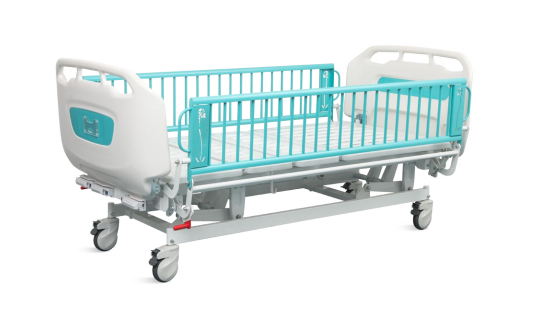

Children Bed NINO S2
The NINO S2 Children Bed is thoughtfully designed to ensure both safety and comfort for young patients. With smooth manual adjustments, anti-pinch side rails, and a soft, curved design, it combines durability with a child-friendly experience in every detail.
Children Bed NINO S2
The NINO S2 Children Bed is thoughtfully designed to ensure both safety and comfort for young patients. With smooth manual adjustments, anti-pinch side rails, and a soft, curved design, it combines durability with a child-friendly experience in every detail.
| External size (LxW) | 2030x1045 mm |
| Bed height | 500-770±10 mm |
| Mattress platform | 1705x900±10 mm |
| Back-rest adjustment | 0-75° (±10°) |
| Knee-rest adjustment | 0-35° (±10°) |
| Manual cranks | 3pcs |
| 5" hardshell castors | 4pcs |
| Aluminium alloy full length side rail | 1set |
| ABS grace bed ends with safe lock | 1set |
| IV pole | 1pc |
| IV pole prevision | 4pcs |
| Drainage hook | 2pcs |
Accessories
Design
Head foot board, with curve surrounded design, provide conforting feeling for patients.
Plastic
Environmental plastic can be sterilizedin 100'C, tensile upto 30MPa
Steels | Painting
11 Process epoxy painting, ASTM testinganti-baterial, paint thickness 0.12mm, brightness 60°, paint can resist 50kg impact.
Welding | Chassis
Panasonic Roboticensure 360° full smooth wedlding.

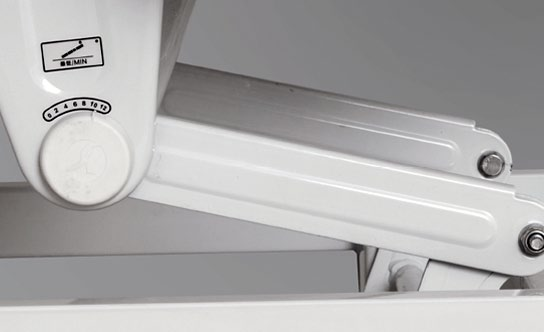

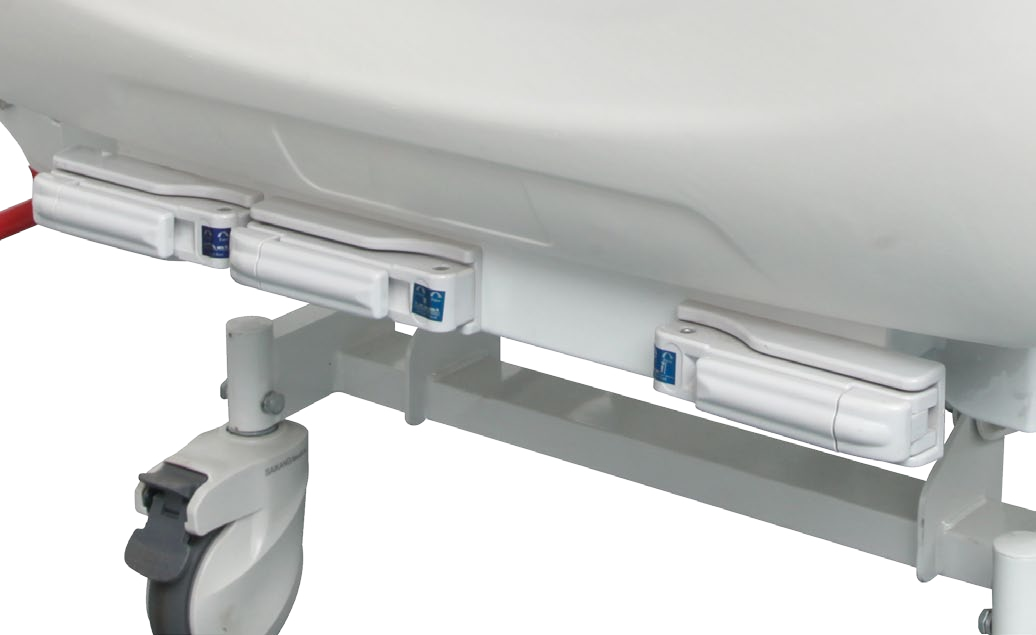

Hand Control
The Bed With Three Functions, Controlled by manual cranks.

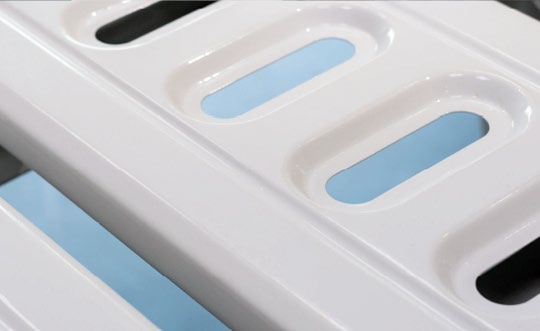

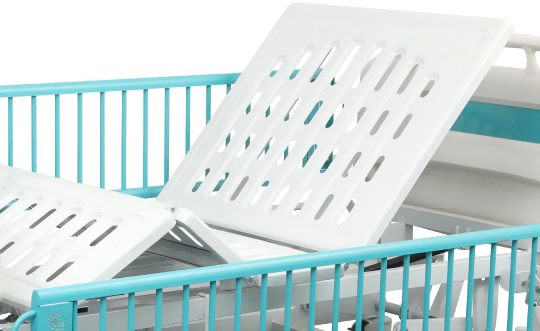

Platform
Punching platform, smooth surface no welding scar, bearing 250KG load.

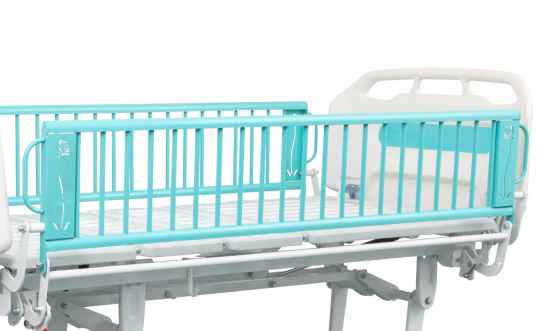

Guardrail
Sliding full side rails with distinctive design, elegant appearance; The lock bar is in conspicuous red,easy operation, sliding upper and down smoothly; Anti-pinch design, effectively protect the safety of children in use.

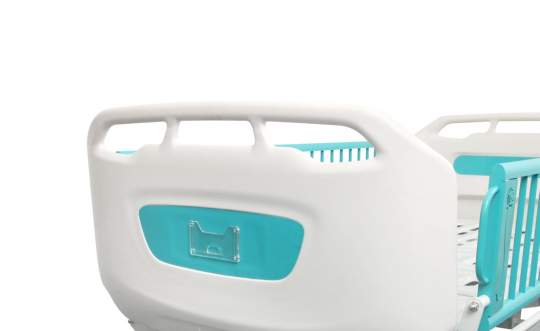

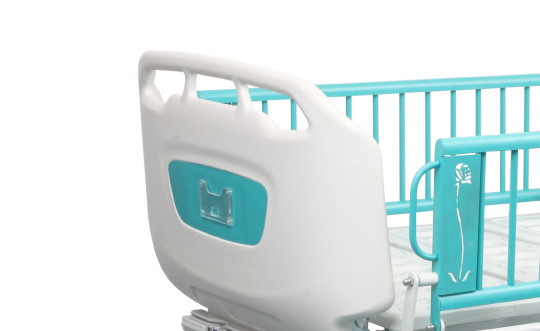

Head & Foot Board
Head and foot board can be reversable, extra height design. ABS Grace Bed Ends with Safe Lock, automatic lock without any manual operation on lock, on/off removable mark on hook lock.

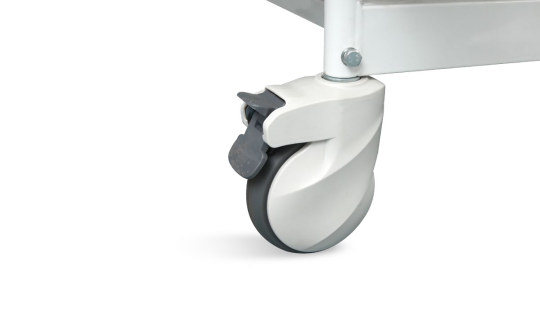

Castors
TPR tire no worn out after running 30KM, save anti-winding hard shell, united forming without bolts Pass Dynamic test: Bearing 120kg run 30KM and pass obstacles 500time.
