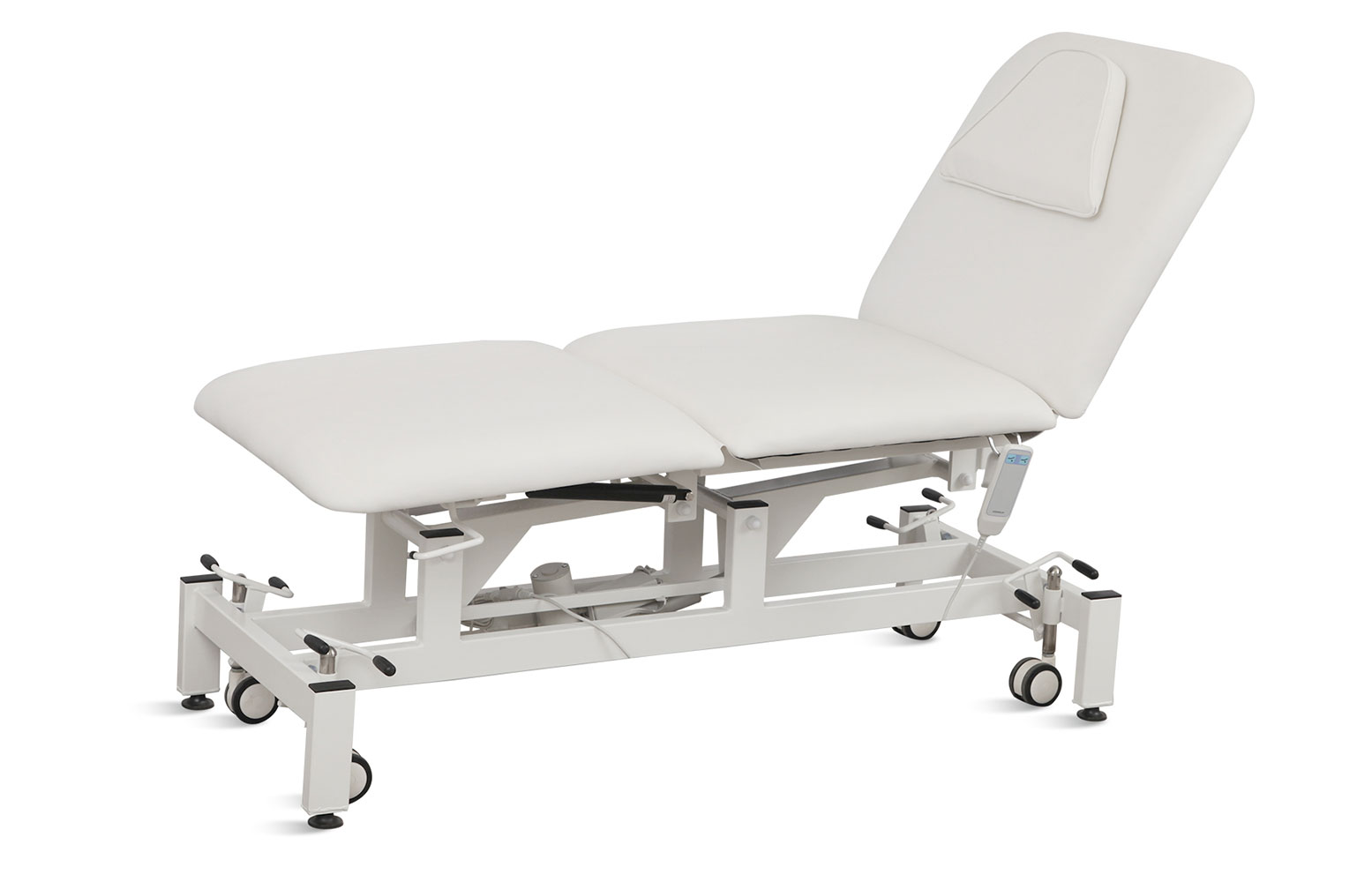

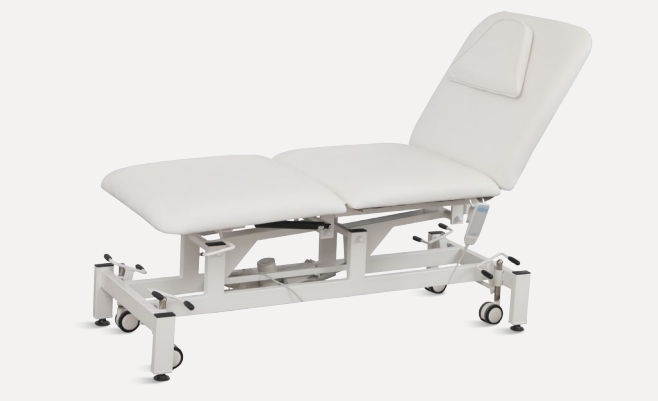

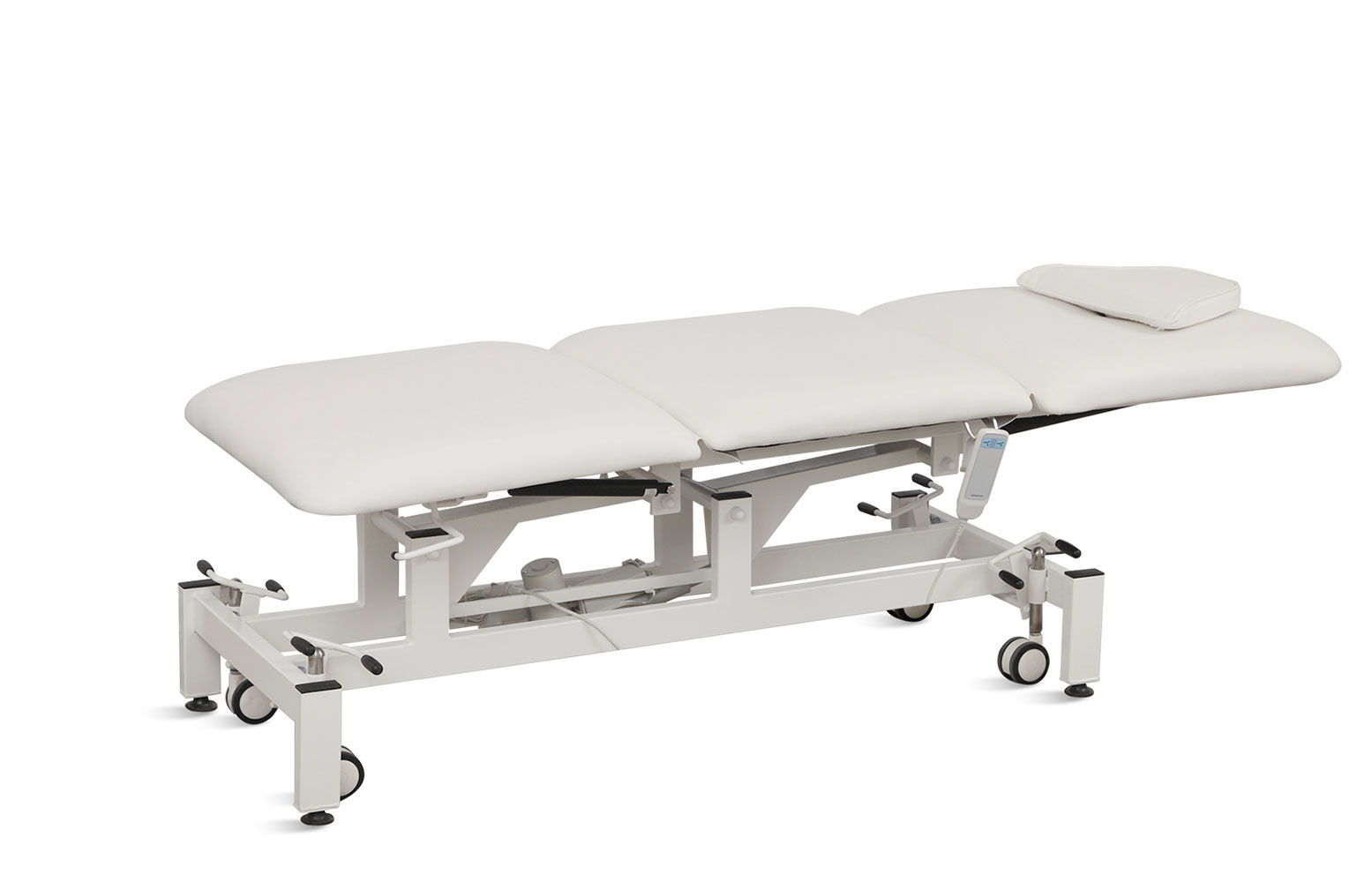

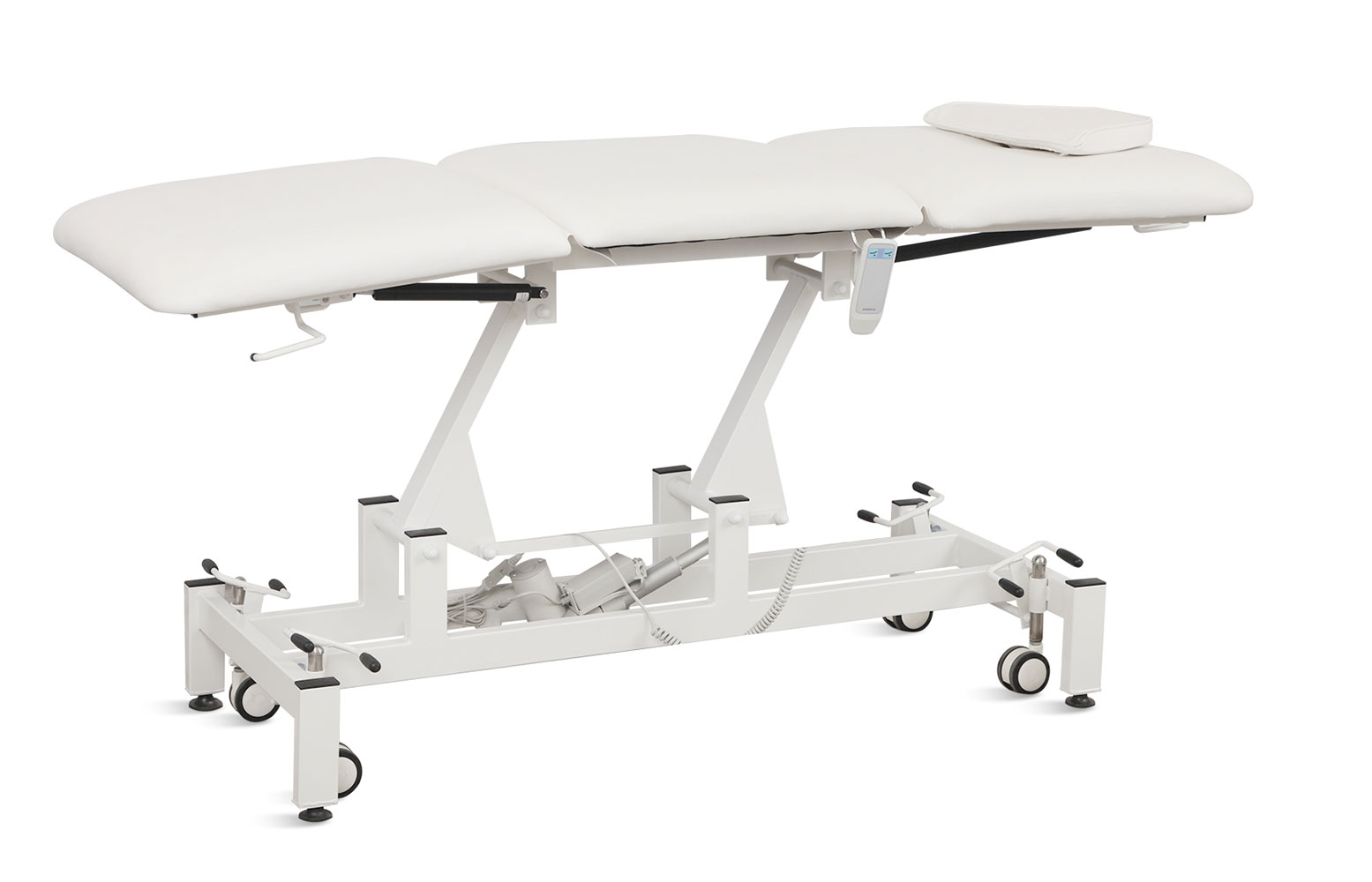

Electric Examination Table GANAS 2
- Two-fold, ergonomic design
- Adjustable height for patient convenience, personalized design aids diagnosis
- Functions as both bed and chair
- High-bearing, durable stability
- Safe for heavy pressure impac
BED SURFACE

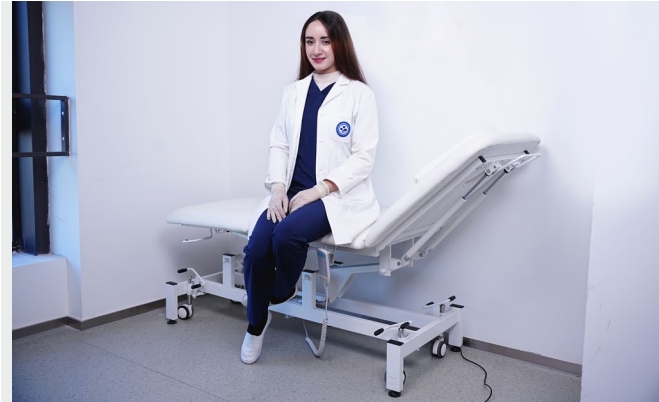

DUAL USE
| External Size (LxW) | 1890x680 mm |
| Height Adjustment | 470-910 mm |
| Head up/down | 85º/40º |
| Leg up/down | 48º/45º |
| Bearing Capacity | 150 kg |
| Headrest Hole | 150 mm |
| Input Voltage | 110-230 V |
| Output Power | 24 W |
| Pillow | 1pc |
| Motor | 1pc |
| Gas Spring | 2pcs |
| 3" Casters | 4pcs |
| Brake Pedal | 4pcs |
| Hand controller | 1pc |
| Manual Operator | 1pc |
Accessories

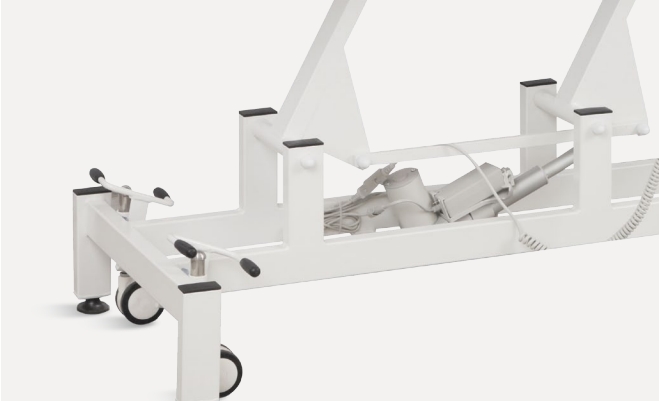

Bed Frame
The bed frame surface is painted with 1.5mm powder coated steel and welded by Panasonic Roboticseamlessly. Strong corrosion resistance,environmentally-friendly, bright surface, maintain an overall beautiful appearance. With this structure, the whole bed maintains more stable and makes patients feel more safe.

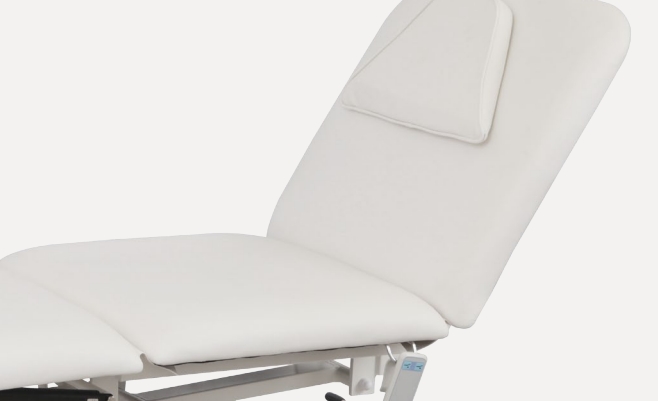

Mattress
The bed platform is integrally made of the high-end composite leather and hand-made cotton mattress, of which the curve design is ergonomic, elastic and soft, breathable,environmentally-friendly, easy to be cleaned, anti-bacterial,impact-resistant,

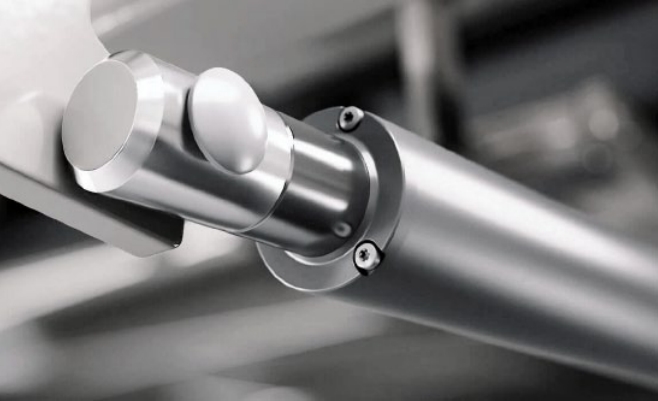

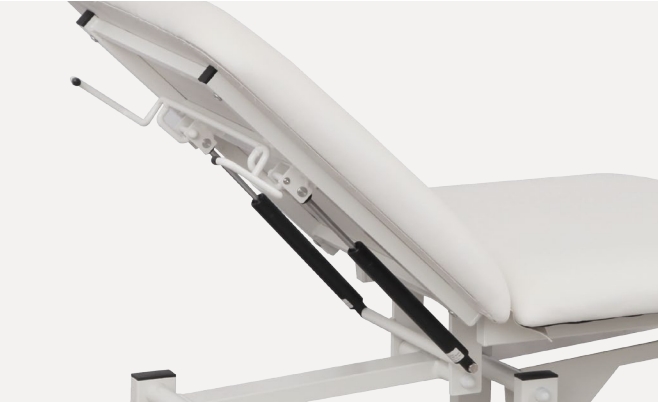

Pneumatic Pole support
Two air springs are equipped on the back and legs to provide users with a quiet and safe environment during diagnosis and avoid interference.
Control System
CE certified linearactuatormotor, one-buttom free lift, low noise, and long service life. Manual (foot control) electric overall lifting,manual back-rest lifting, leg-rest lifting adjustment, height adiustment

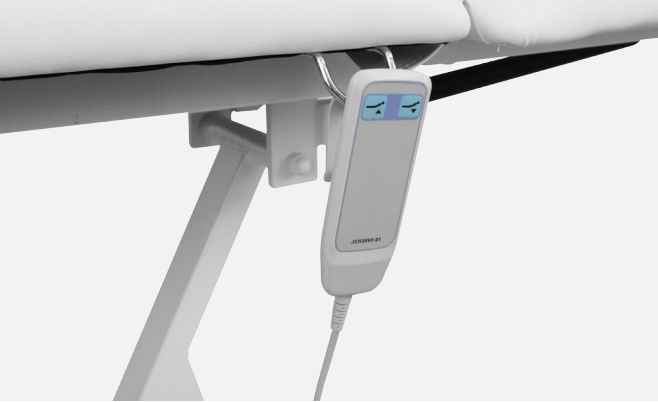

Hand Controller
The bed is equipped with Hand-held controller, so that the optimal height is easy to be adjusted by pressing the single button gently. The hook on the back is convenient to take down for patients and nurses

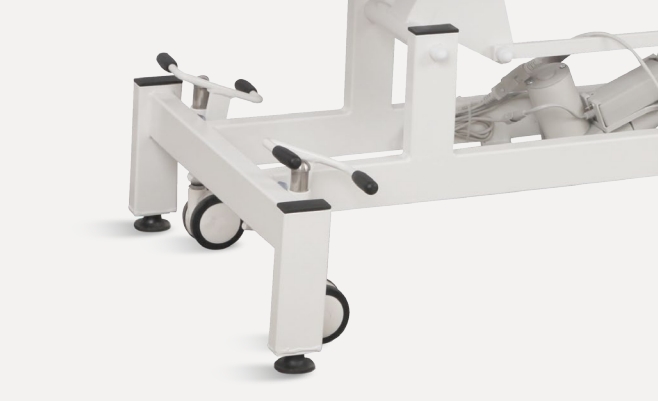

Bed Foot Equipment
Equipped with 4pcs 3-inch double-sided wheels, 2 fuctionsside Drake with 4 pedals, which are convenient to move and fix.The design of 360"rotating pulley made of polyurethane PU is strong, durable,non-slip,strong in pressure resistance, and good in stability.

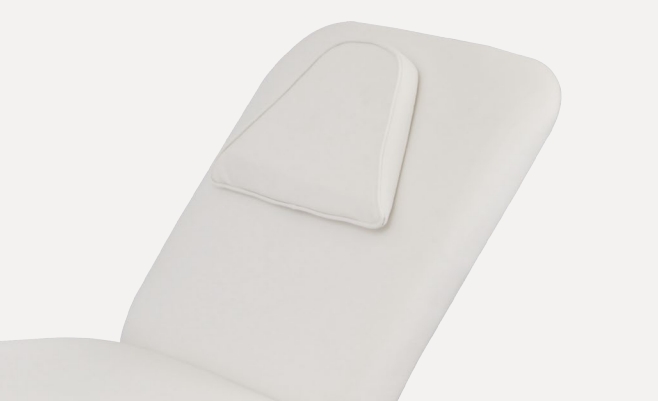

Assorted Pillow
The neoteric design of the pillow is narrow on the top and wide on the bottom. ltswell. shaped and elegant design matches with modern aesthetic ideas and can blend into theenvironmentharmoniously. Pillow can be disassembled according to demand.
Round Covered Edge
The bed platform was covered in 360.The soft-touch of surface would be saferforusers.

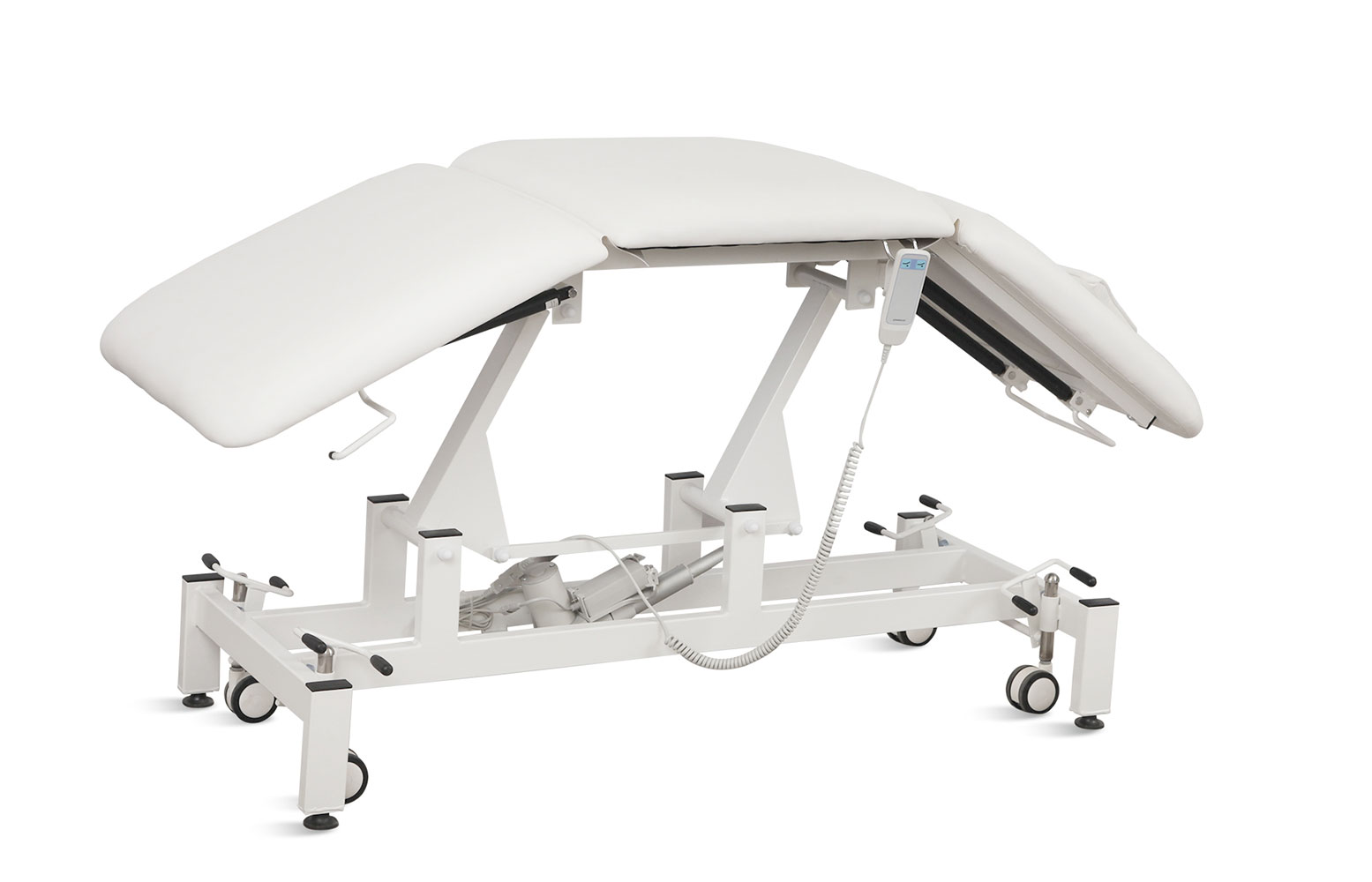

Design
Bed surface two fold three ergonomic design, adjust the height according to the patient's height, personalized design help diagnosis. Dual use of bed and chair, high bearinglasting stability, no fear of heavy pressureimpact, to ensure safe use.
