| External Size(LxWxH) | 2080x550x(700-1000)mm |
| Reverse Trendelenburg | 0-25° |
| Trendelenburg | 0-25° |
| Lateral tilt left/right | 0°-25°/0°-25° |
| Head plate up/down | 0°-50°/0°-90° |
| Back plate up/down | 0°-80°/0°-20° |
| Leg plate up/down/outwards | 0°-20°/0°-90°/0°-90° |
| Horizontal sliding | 0-300 mm |
| Kidney bridge elevation | 0-140 mm |
| Safe Working Load | 250 kg |
| Shoulder support | 2pcs |
| Arm support | 2pcs |
| Lumbar support | 2pcs |
| Leg support | 2pcs |
| Foot support | 2pcs |
| Sliding block | 8pcs |
| Spanner | 5pcs |
| Hand controller | 1pc |
| Mattress | 1set |
| Anesthesia screen frame | 1pc |
PRODUCT DESCRIPTION
Head Plate
Uses a gas spring support, ensuring quiet operation. Can stop at any angle during operation.

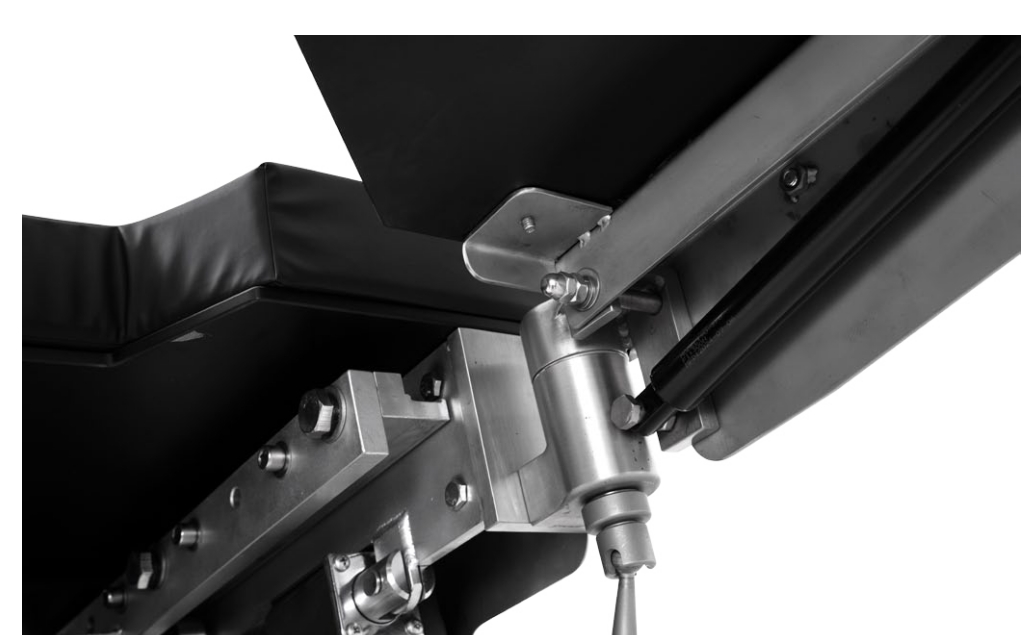

Leg Plate
Utilizes a vertebra link with gas spring support, allowing for one-handed and effortless operation. Can stop at any angle; Outward rotation requires only a slight loosening of the locking axis to achieve leg board abduction.

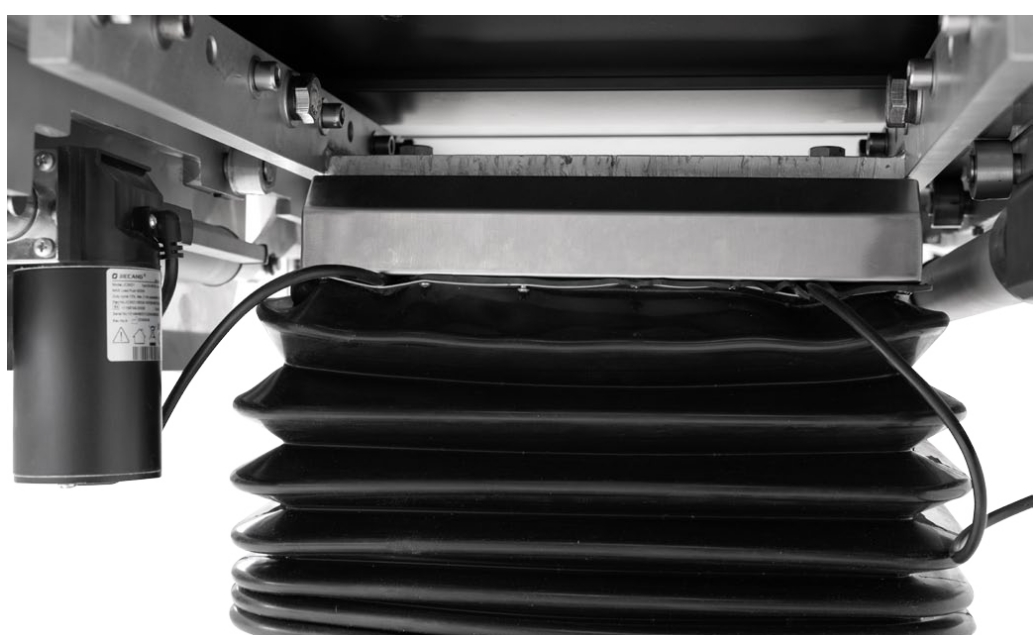

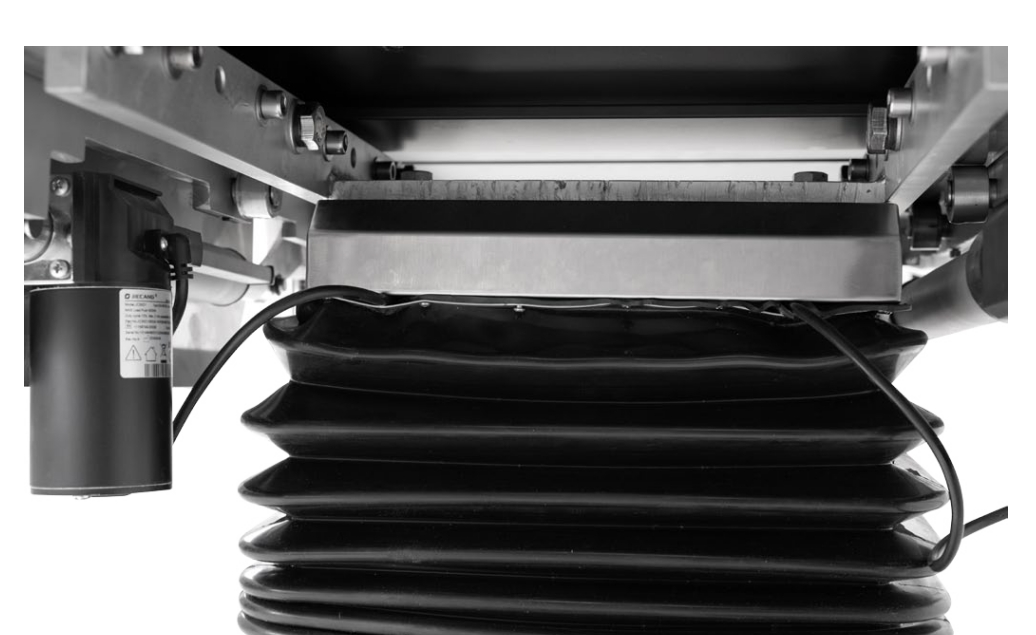

Motor Cable
Concealed motor cable, keeping the under side of the table top clean and unobstructed for clear imaging.

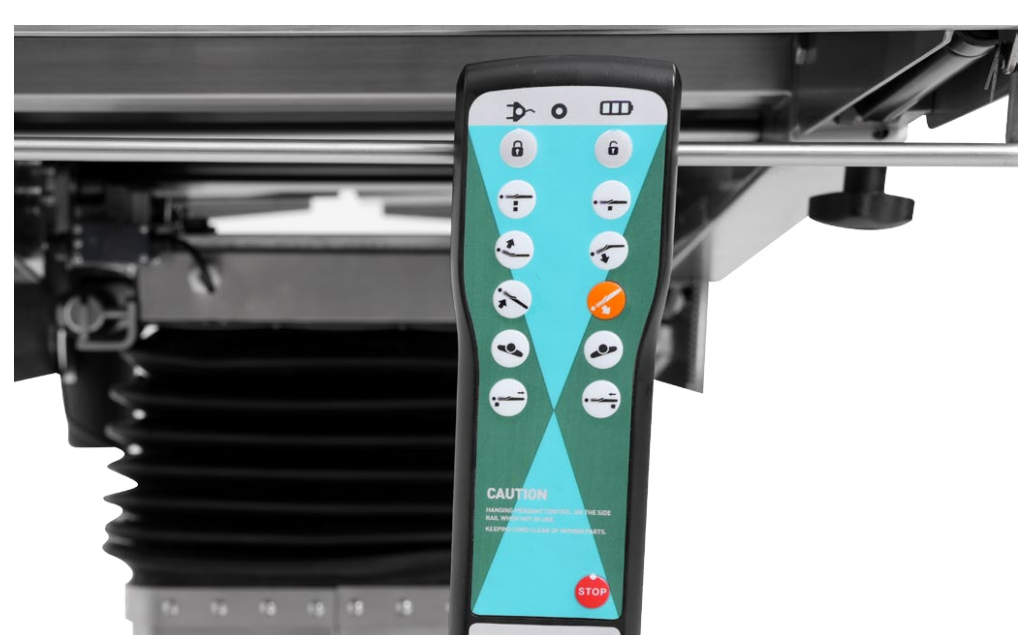

Hand Controller
Connection cable is located under the base, keeping the under side of the tabletop clean and unobstructed for clear imaging. Features a one-clickplug-and-play design for easy replacement and maintenance. Automatically shuts off after 15minutes of inactivity.Includes an emergency stop button and battery level display.

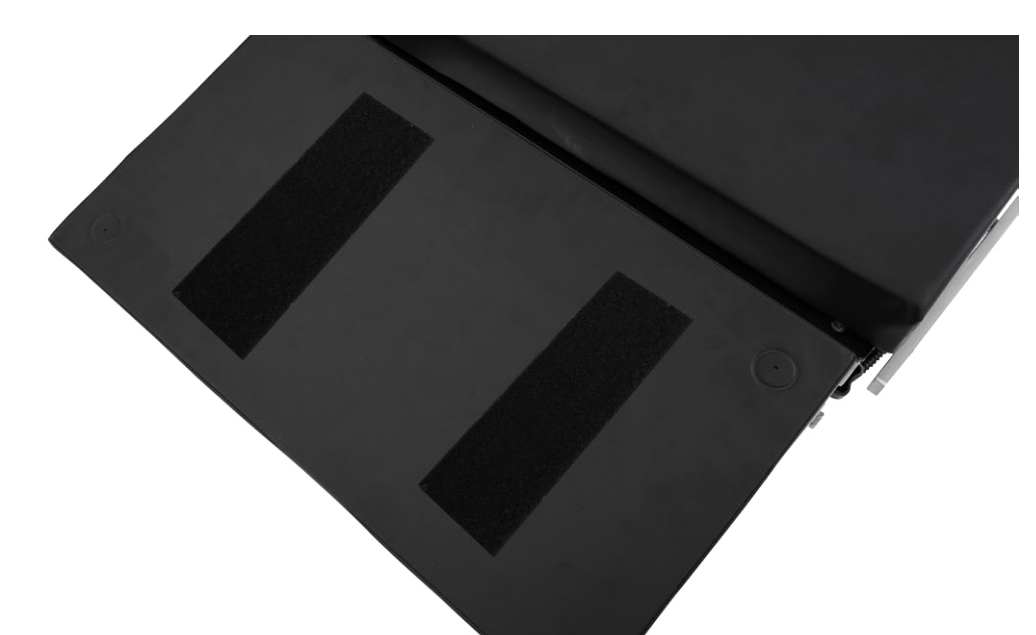

Mattress
High frequency heat sealing technology. Large area of velcro coverage provides strong adhesion.

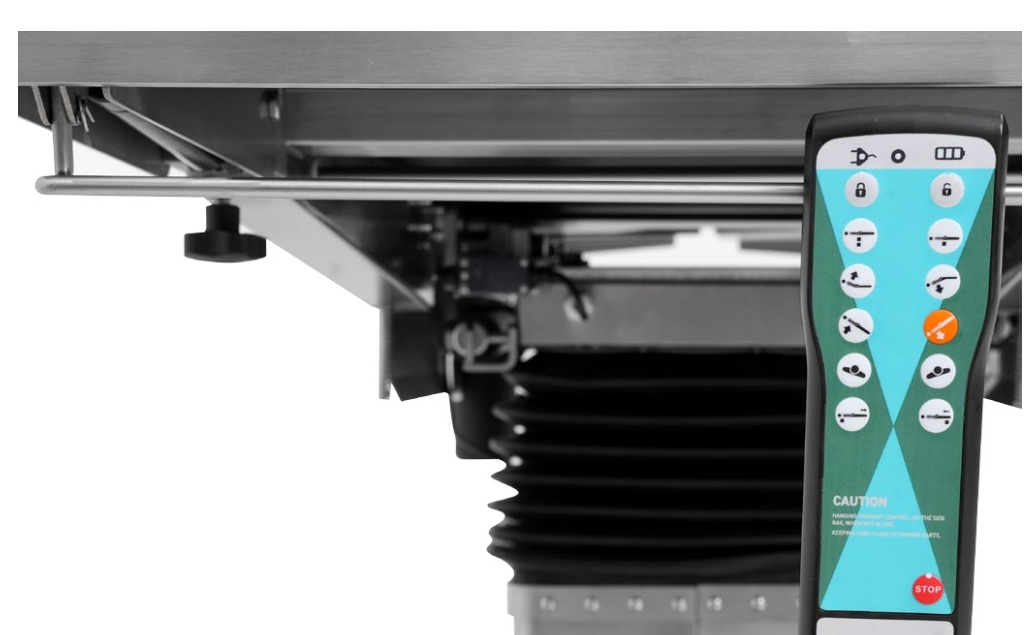

Hand Controller Storage
Can be hung at any position on the head board without affecting clinical use.

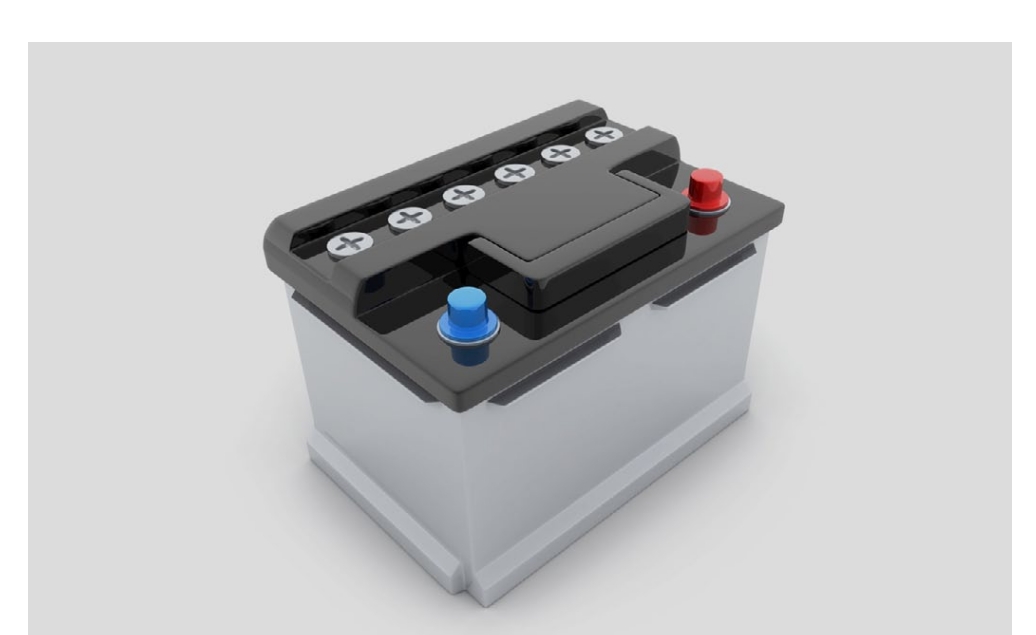

Battery
Battery could support about 80-120 complete operation cycles.Working time could be last for one week according to useage and help to keep the operating table running in the event of power failure.

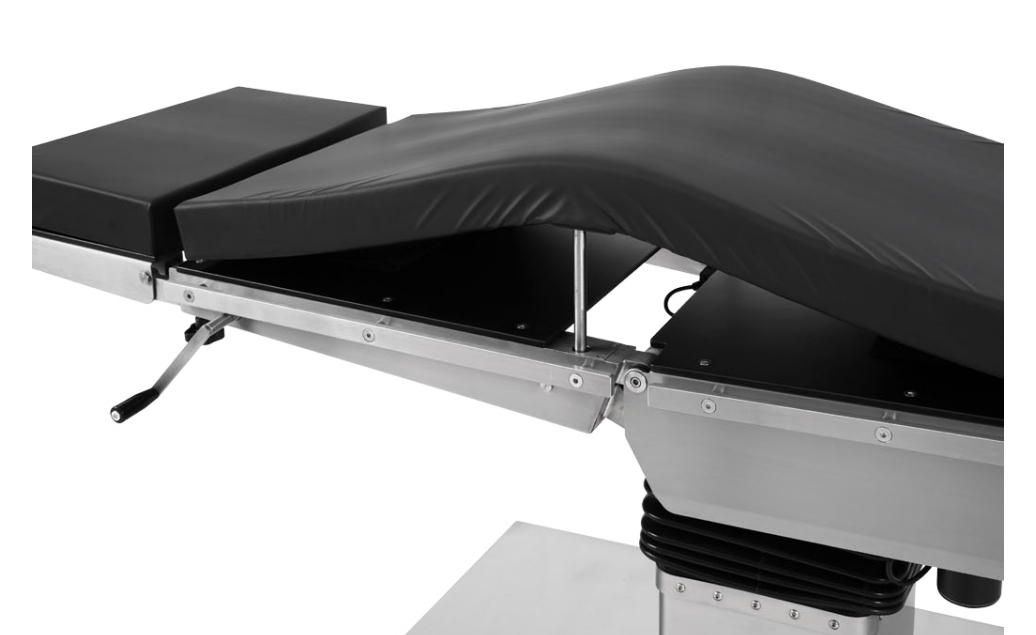

Kidney Bridge
Manual kidney bridge, operate by head side rocker,more convenience.
Anesthesia Screen Frame
Equipped with a stainless steel anesthesia screen frame for hanging anesthesia curtains,used to shield and cover the patient's head during use.
