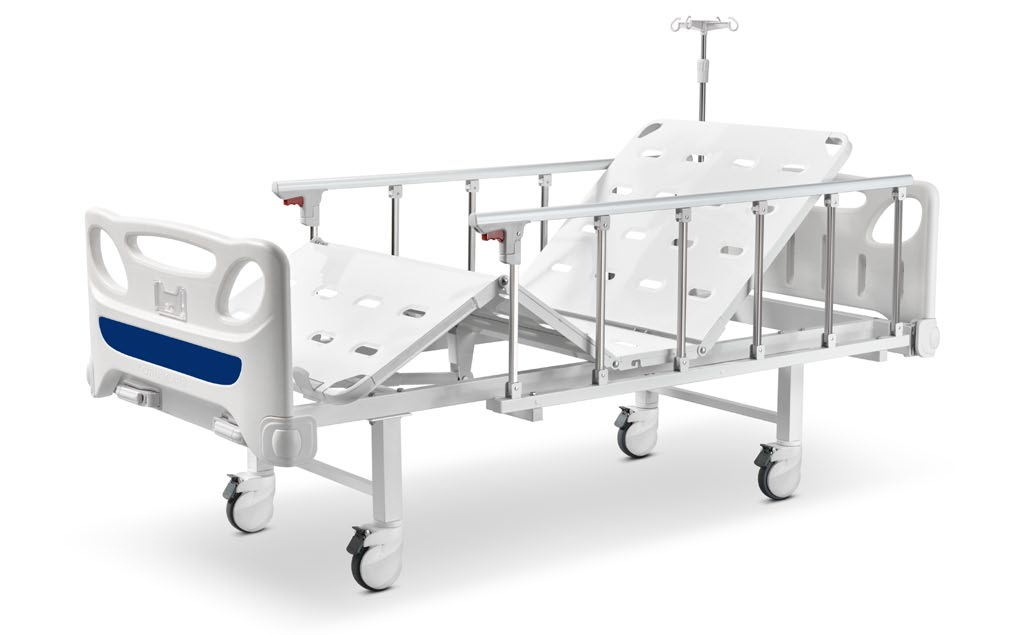

Manual Bed GRATO 2
The GRATO 2 Manual Bed blends modern aesthetics with practical design, featuring elegant head and foot boards with integrated protective corners and space-saving bumper wheels. Built for durability and smooth operation, it boasts precision robotic welding, eco-friendly materials, and user-friendly hand cranks designed to last through intensive use. Ideal for reliable and comfortable patient care.
Manual Bed GRATO 2
The GRATO 2 Manual Bed blends modern aesthetics with practical design, featuring elegant head and foot boards with integrated protective corners and space-saving bumper wheels. Built for durability and smooth operation, it boasts precision robotic welding, eco-friendly materials, and user-friendly hand cranks designed to last through intensive use. Ideal for reliable and comfortable patient care.
Modern and elegant bed design
| External Size (LxW) | 2160x980mm ±10mm |
| Mattress Platform | 1930x830 mm |
| Safe Working Load | 200 kg |
| Height Adjustment | 505 mm |
| Back-Rest Adjustment | 0-80° (±10°) |
| Knee-Rest Adjustment | 0-35° (±10°) |
| Manual Cranks | 2pcs |
| 5" Covered Castors | 4pcs |
| Foldable Side Rail | 1set |
| PP Bed Ends with Safe Lock | 1set |
| IV Pole | 1set |
| IV Pole Provision | 4pcs |
| Drainage Hook | 2pcs |
QUALITY CONTROL
Design
The design is both modern and practical. The head and foot boards feature a beautiful and elegant shape. The use of a hollow protective wrap angle, combined with a barrel-type bumper, makes the product instantly recognizable.

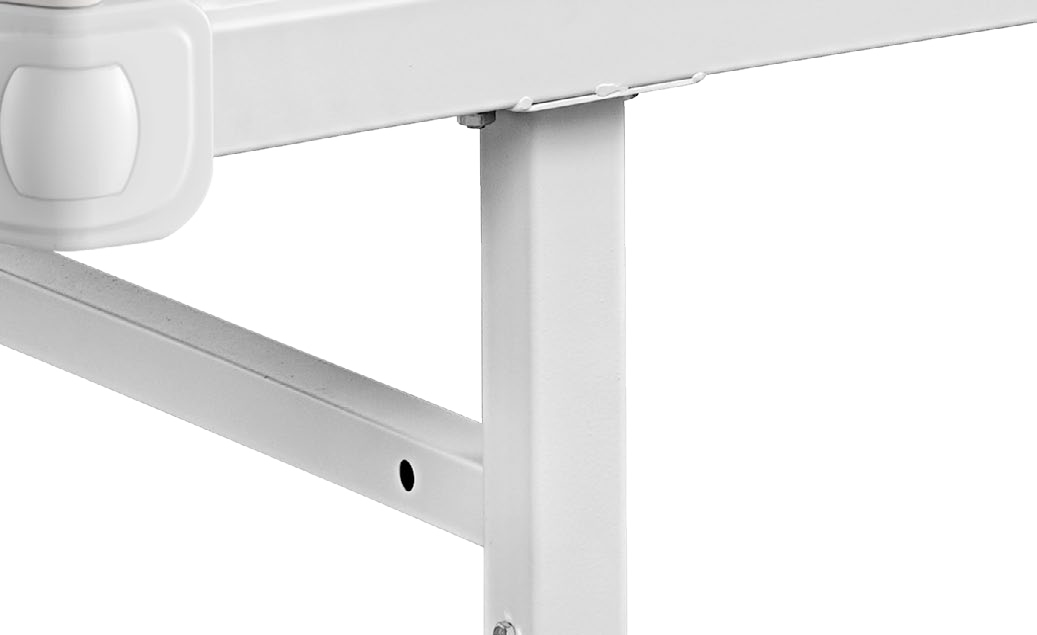

Steels丨welding
Baosteel from Fortune Global 500. Panasonic Robotic ensure 360° full smooth welding.
Plastic丨Painting
Environmental plastic can be sterilized at a temperature of 100°C and has a tensile strength of up to 30MPa. 11 Process epoxy painting with a thickness of 0.12mm and a brightness of 60°, which is capable of resisting impacts of up to 50kg
Accessories

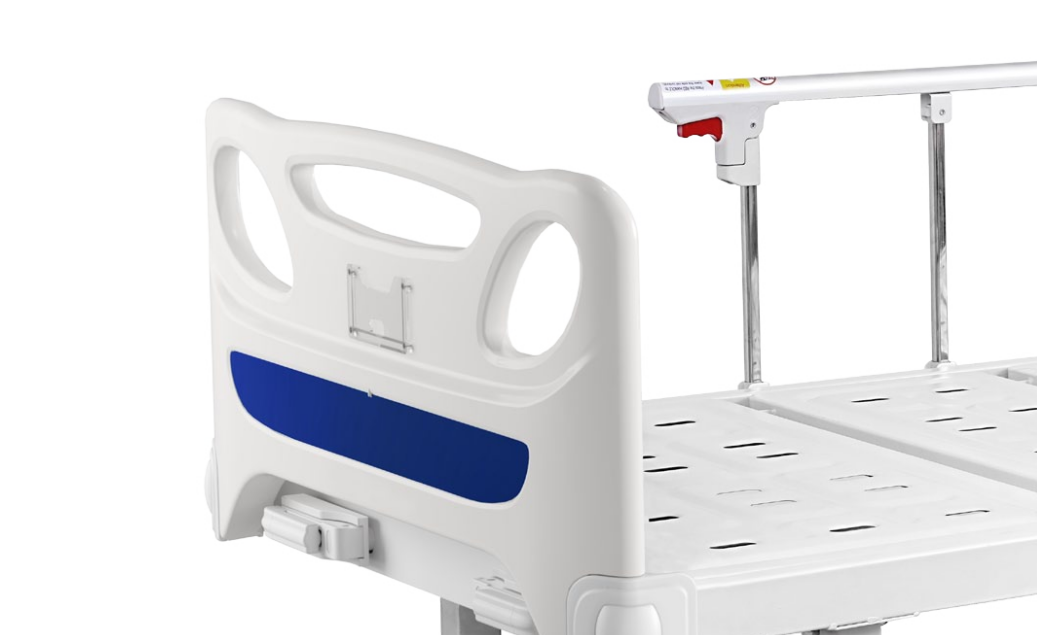

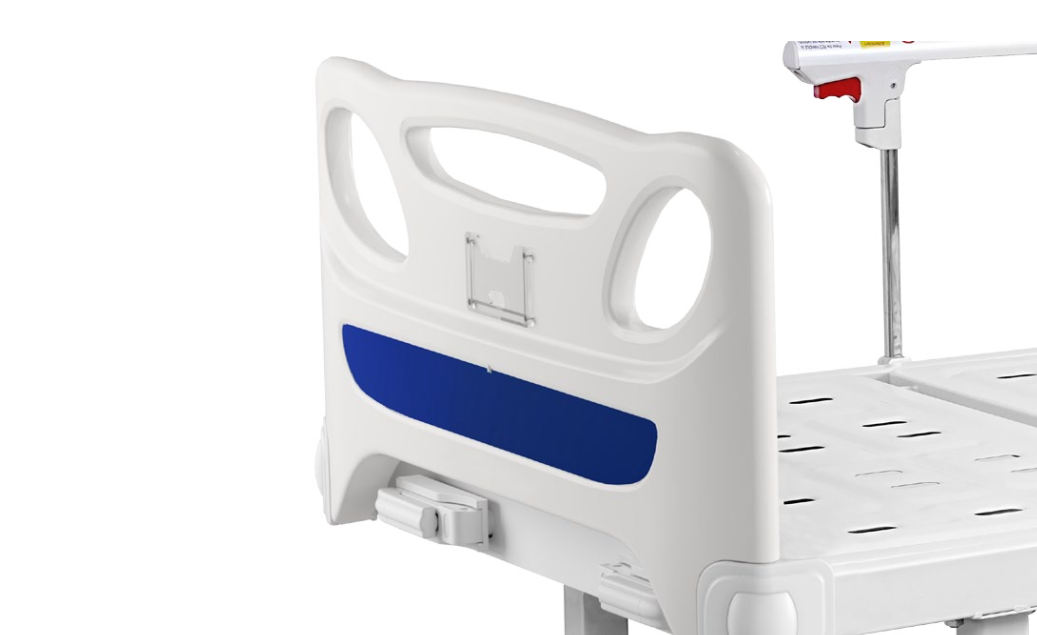

Head & foot board
The head and foot boards feature "integrated protective corners" with hollow design, which are combined with barrel-type bumper wheels that have a diameter of 60mm. This design not only minimizes the overall space occupied by the bed but also provides protection. Additionally, the head and foot boards are effortless to disassemble and clean.

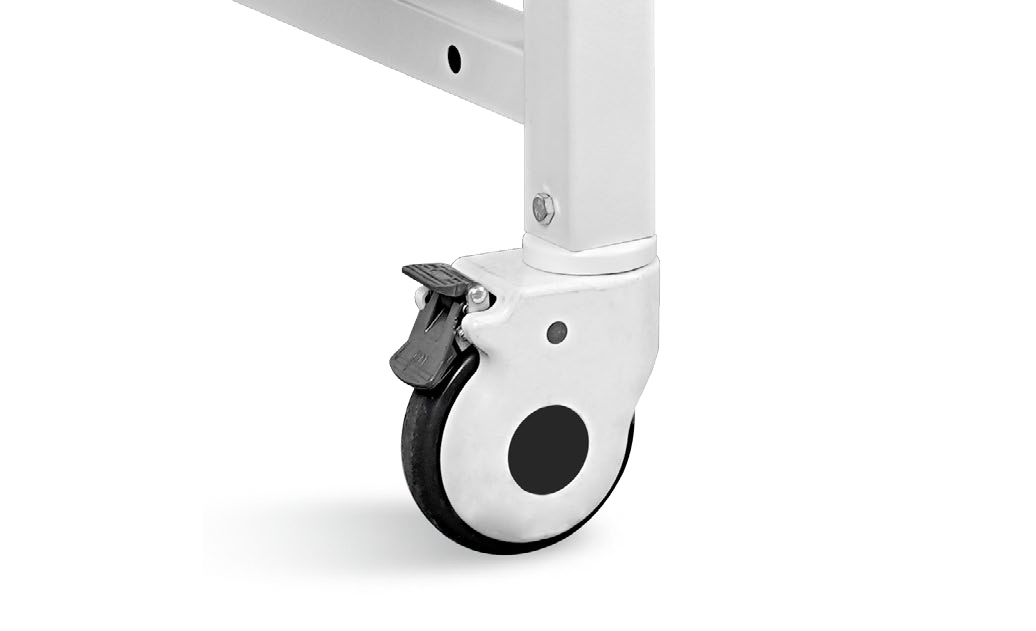

Castors
5”covered castors. TPR material, walks 30KM with no wear and tear. Precision-designed anti-winding shell with no screws. Pass Dynamic test: withstand a weight of 120kg, walk 30KM, and pass through 500 obstacles without any deformation or damage.

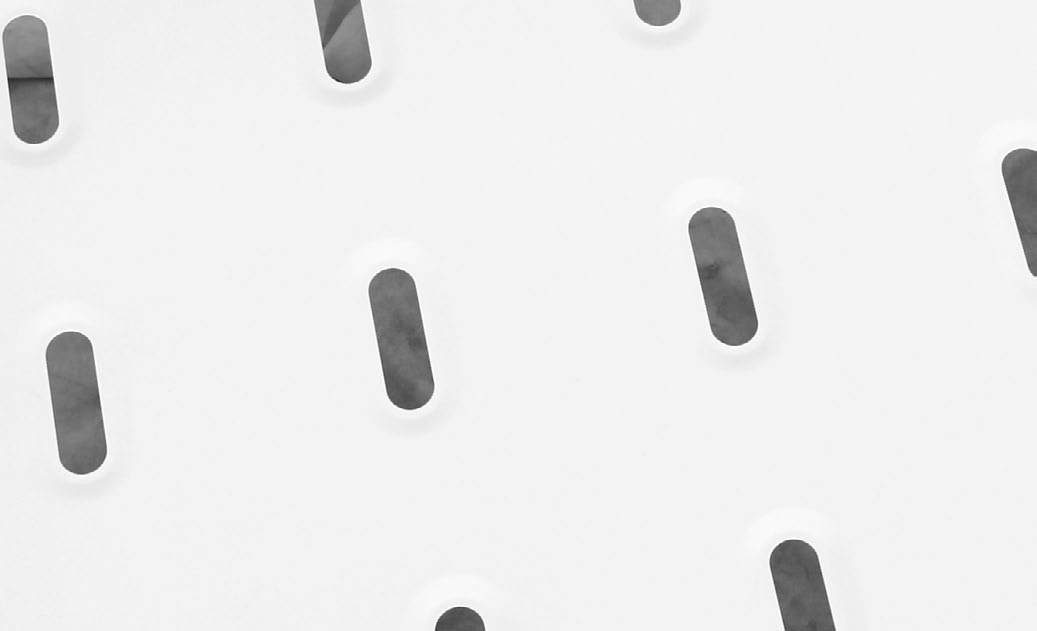

Platform
Stamping forming bed platform features a robot-welded surface that has been polished to perfection, leaving no welding scars. Bearing 200kg.

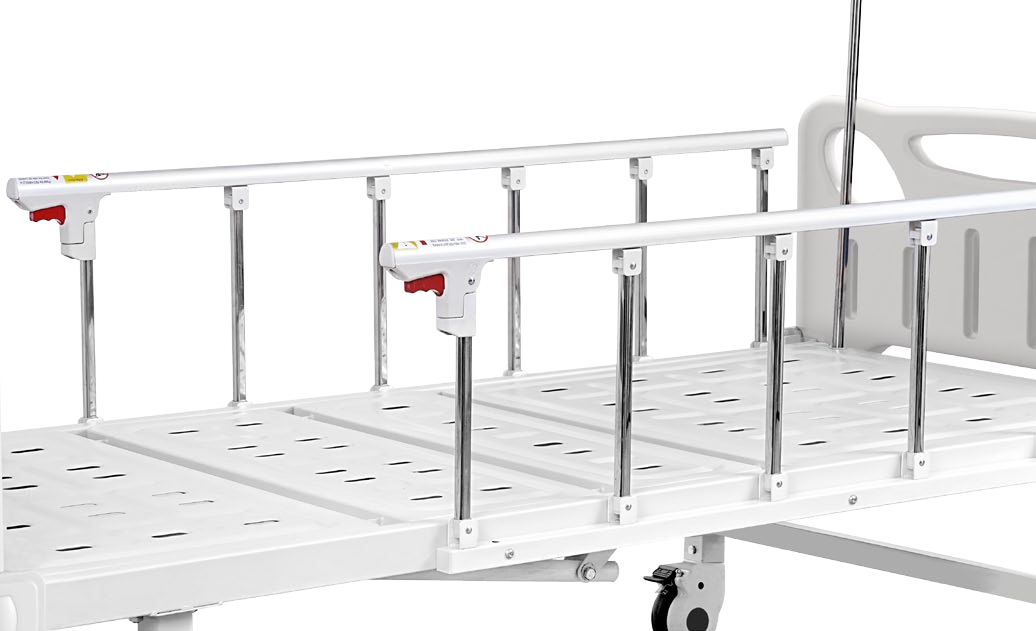

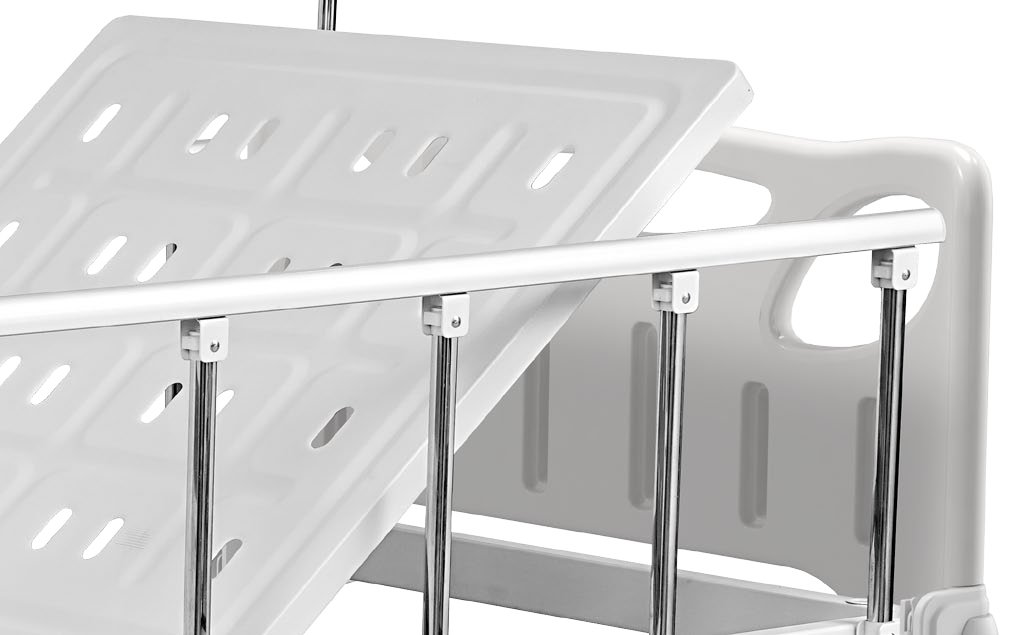

Siderail
The siderails are made of aluminium alloy horizontal bar, 6 vertical stainless steel poles and a plastic handle.
Hand Cranks
Two retractable hand cranks to control backrest and kneerest. The hand cranks remain intact after 100,000 uses.

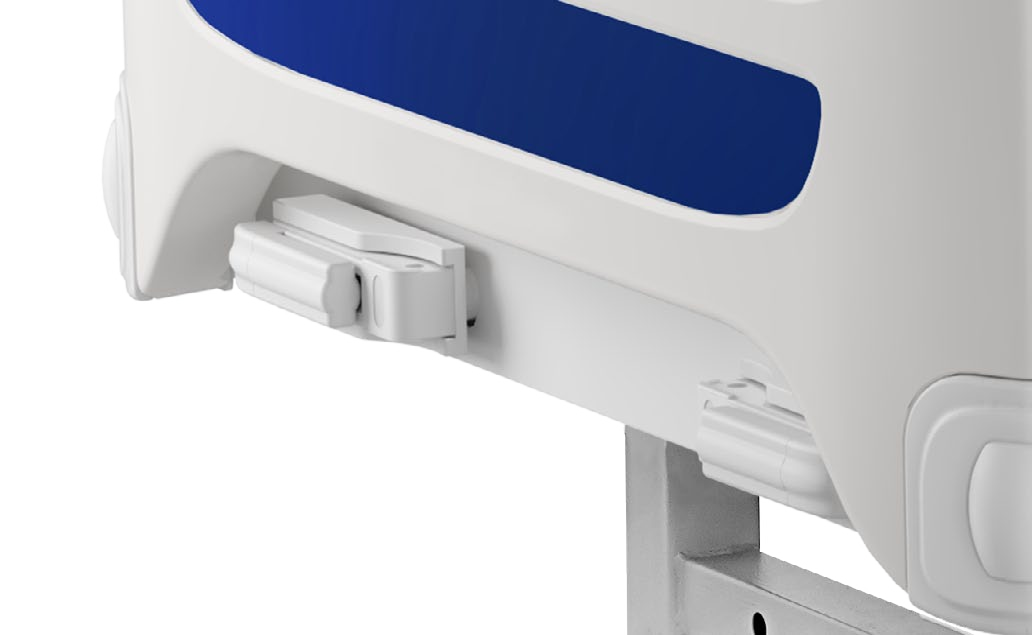

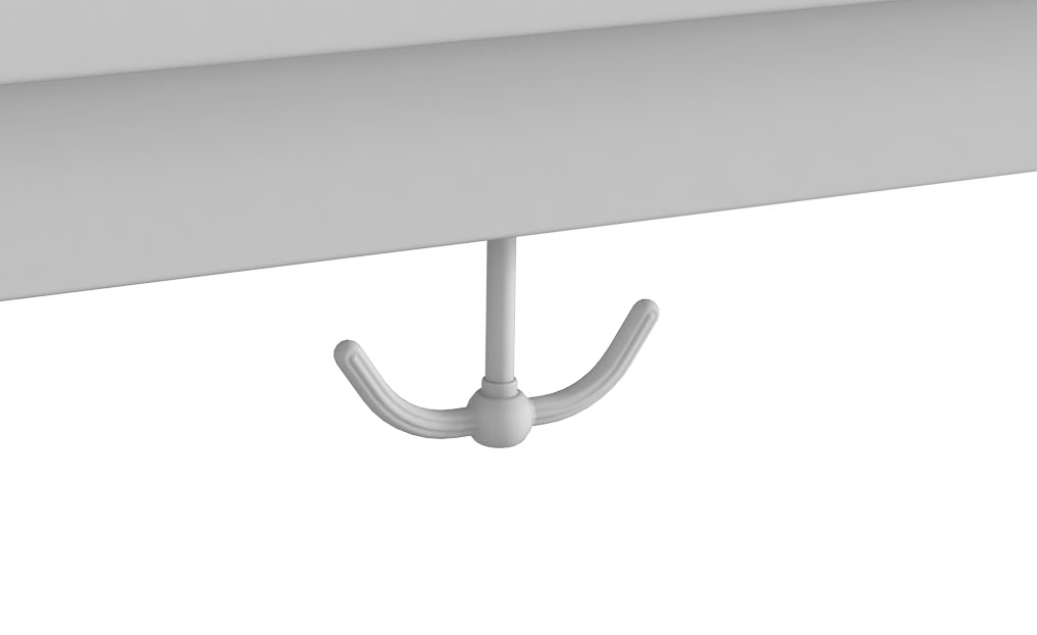

Drainage Hooks
Injection molded drainage hooks on both sides of the bed.

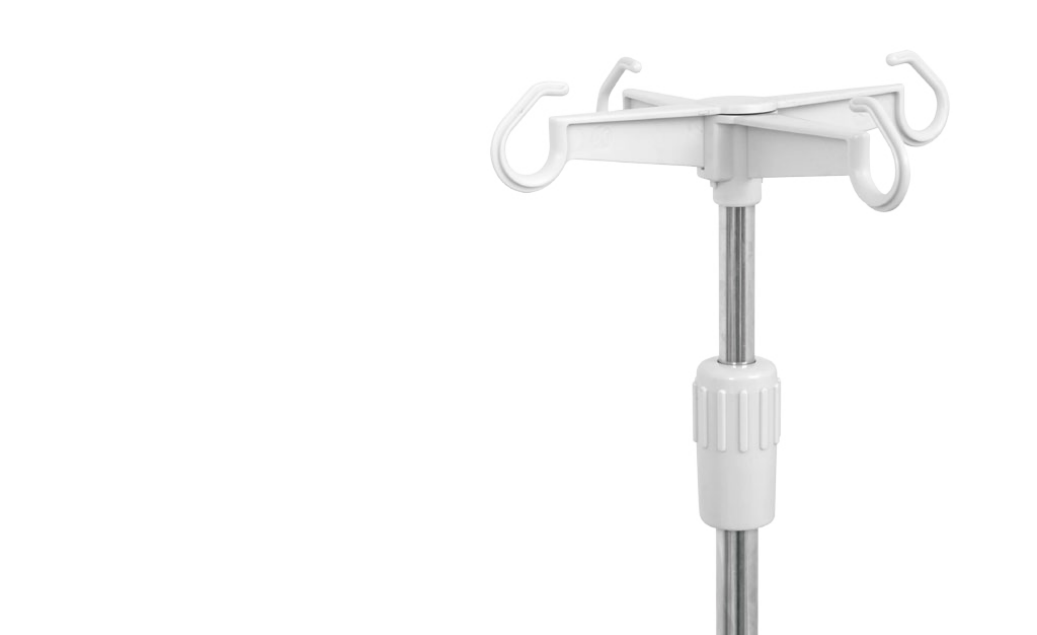

IV Pole
The infusion pole is made of stainless steel and has four plastic hooks that can bear up to 15 kg of weight.
