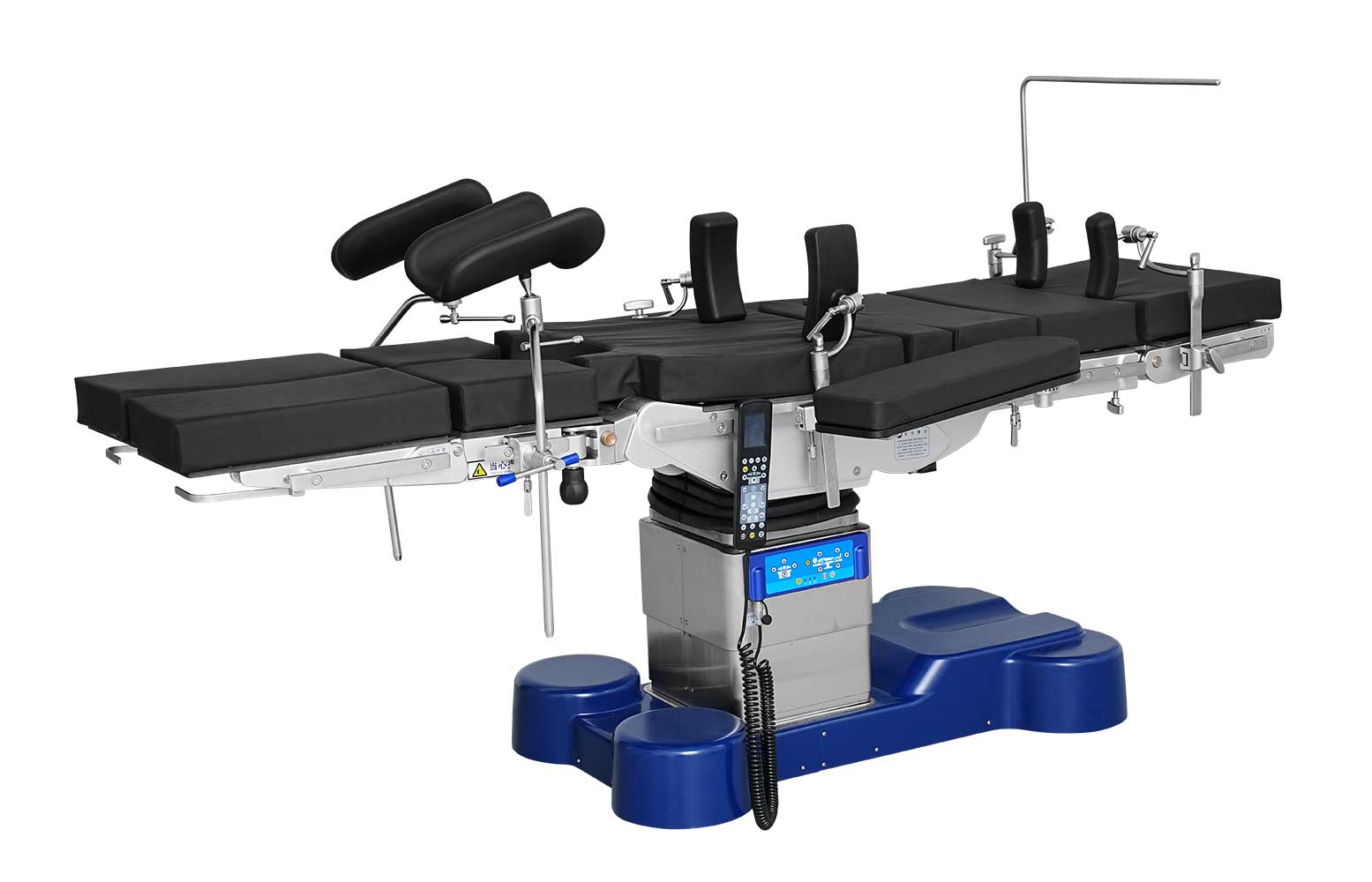

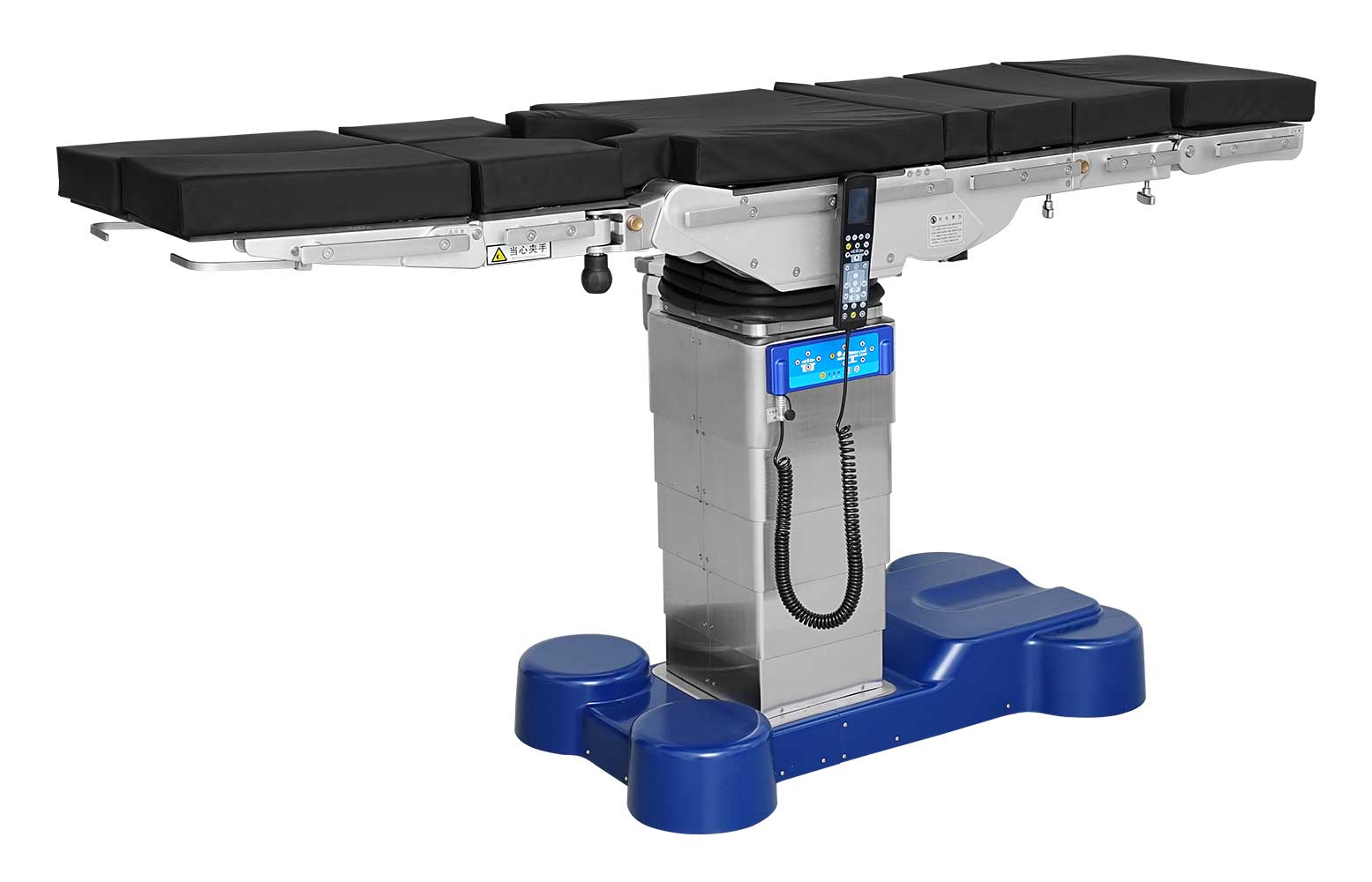

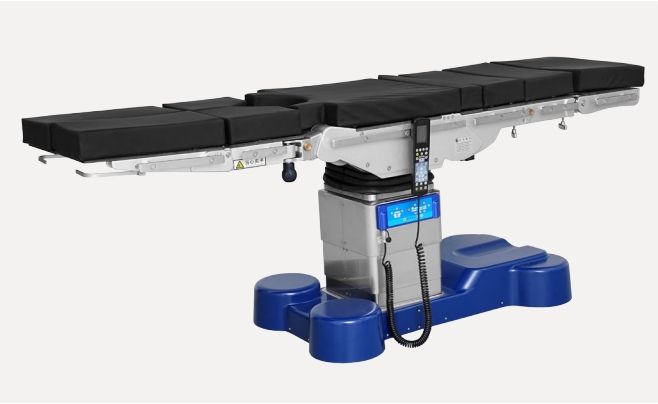

Electric-Hydraulic-Operating-Table CURAR 1

  • Customizable configurations between the headboard, leg board, and backrest to achieve complex positions with simple steps.
  • The system can automatically recognize the direction of the head and leg boards after swapping.

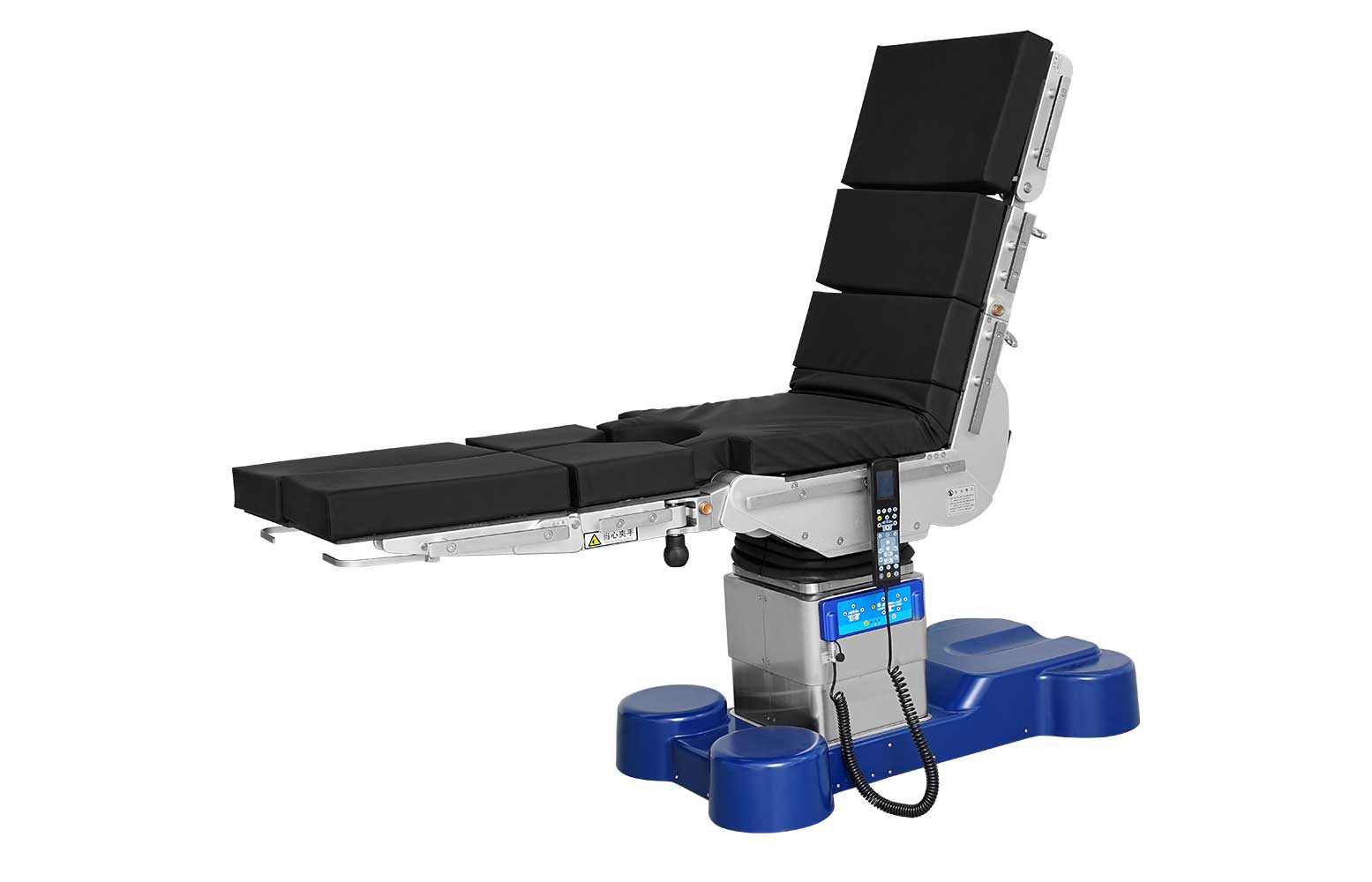

  • One-click composite positioning button for horizontal, flexed,extended,and beach chair positions.
  • Featuring 12 position memory settings that can be easily customized.
Send Inquiry
Facebook Instagram Whatsapp

Electric-Hydraulic-Operating-Table CURAR 1

  • Customizable configurations between the headboard, leg board, and backrest to achieve complex positions with simple steps.
  • The system can automatically recognize the direction of the head and leg boards after swapping.
  • One-click composite positioning button for horizontal, flexed,extended,and beach chair positions.
  • Featuring 12 position memory settings that can be easily customized.
Facebook Twitter Youtube

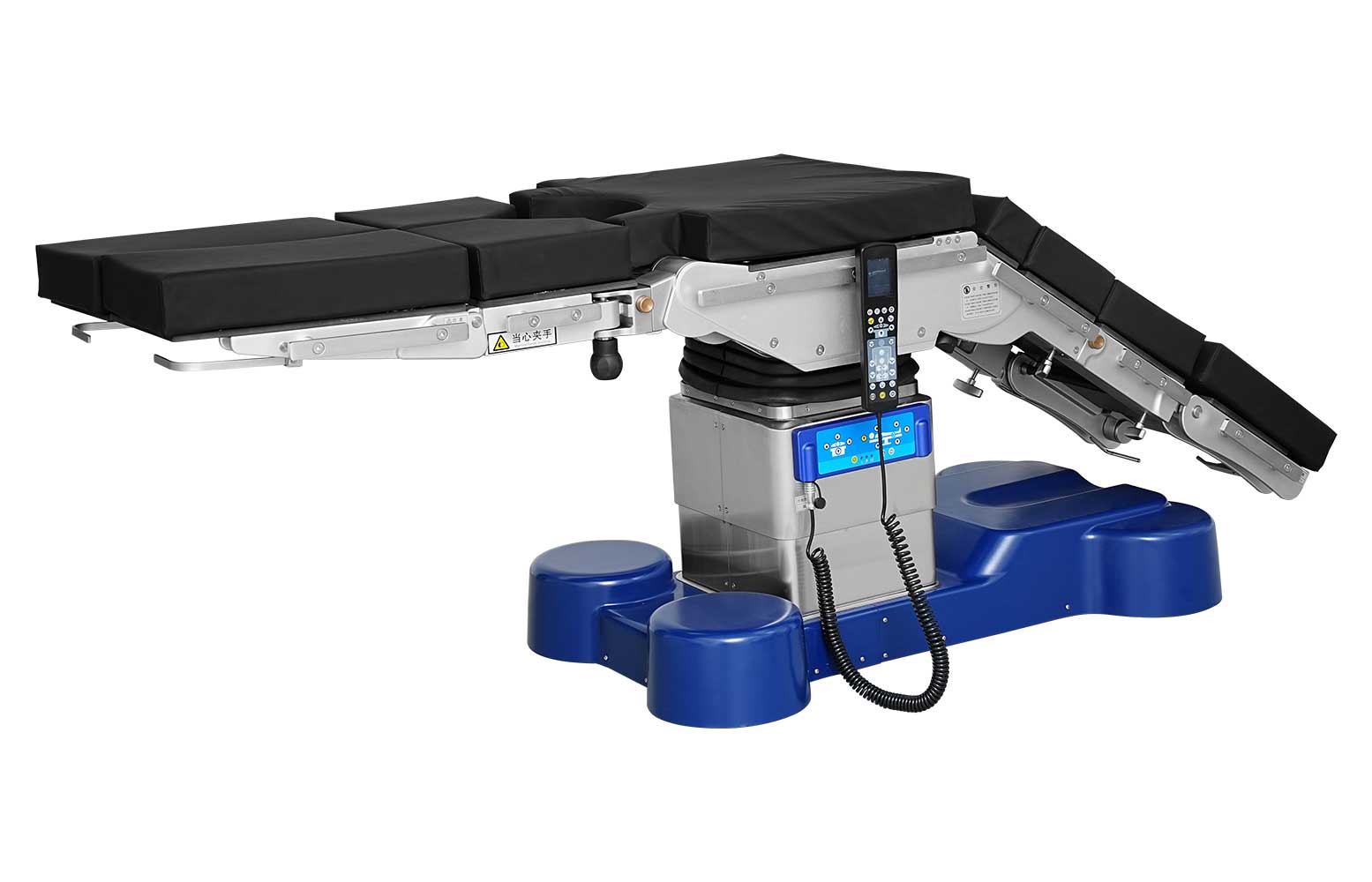

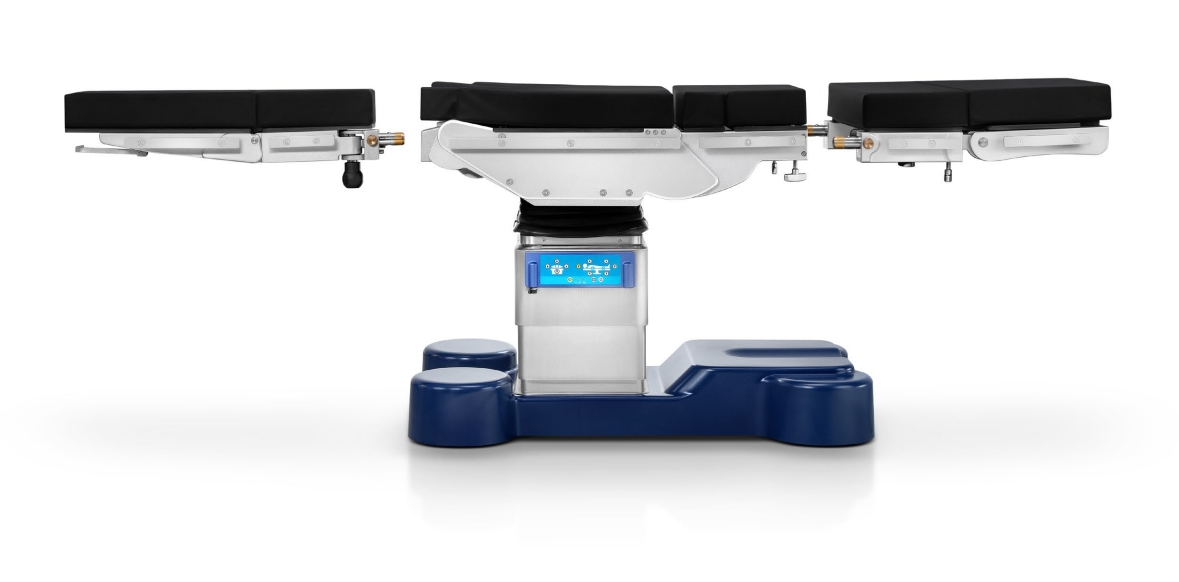

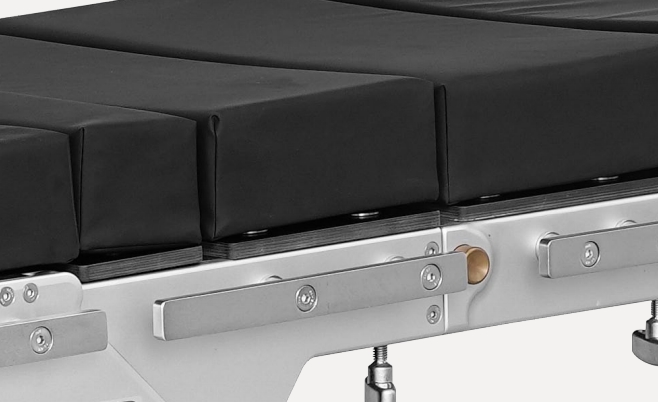

MODULAR TABLETOP AND UNIFIED INTERFACES

Customizable configuraions between the headboard, leg board, and backrest to achieve complex positions with simple steps. The system can automatically recognize the direction of the head and leg boards after swapping.

INTEGRATED ELECTRO-HYDRAULIC & VISUAL CONTROL SYSTEM

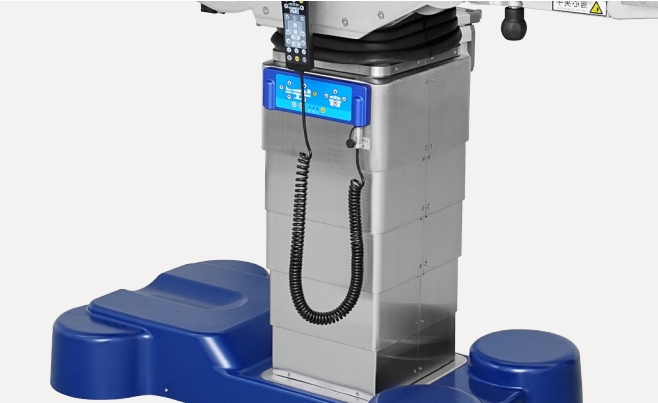

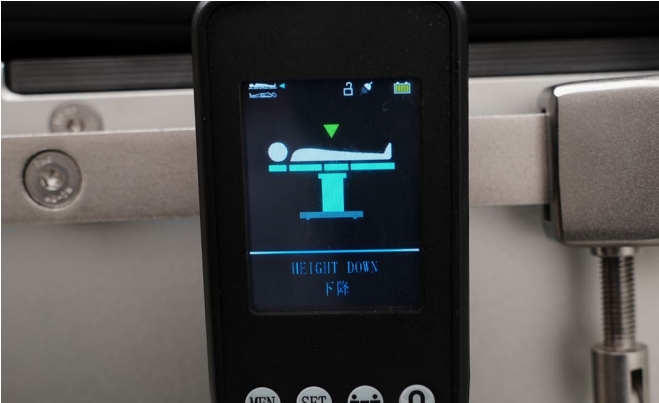

The operating table features a microcomputer-controlled electro-hydraulic system, ensuring smooth and uniform movements with proven electromagnetic compatibility (EMC). A visual hand controller provides real-time feedback on functions and battery status via an LCD screen, with a bilingual Chinese-English menu for intuitive and efficient operation.
External Size (LxW)2160x550mm
Height Adjustment600-1150mm
Reverse trendelenburg0°-36°
Trendelenburg0°-36°
Lateral tilt left/right0°-22°/0°-22°
Head plate up/down0°-50°/0°-90°
Back plate up/down0°-75°/0°-40°
Leg plate up/down/outwards0-70°/0°-90°/0°-90°
Calf board up/down0°-90°
Kidney bridge elevation120mm
Horizontal sliding30mm
Mattress1 set
Hand controller1 pc
Waist support2 pcs
Shoulder support2 pcs
Armrest2 pcs
Leg support2 pcs
Anesthesia screen1 pc
Joint adapter2 pcs
Fixator3 pcs

OUALITY | MATERIAL

Human-centric overall design, meeting both patients' demands for product functionality and comfort.

The table is constructed of aluminum alloy and 304 stainless steel,ensuring aesthetics, durability, shock resistance, anti-breakage, and corrosion resistance while remaining lightweight. lt has a strong weight-bearing capacity of up to 360kg.

The table surface is treated with electrostatic spraying using imported powder coating, anti-aging, rust-resistant, and environmentally friendly with antibacterial properties.

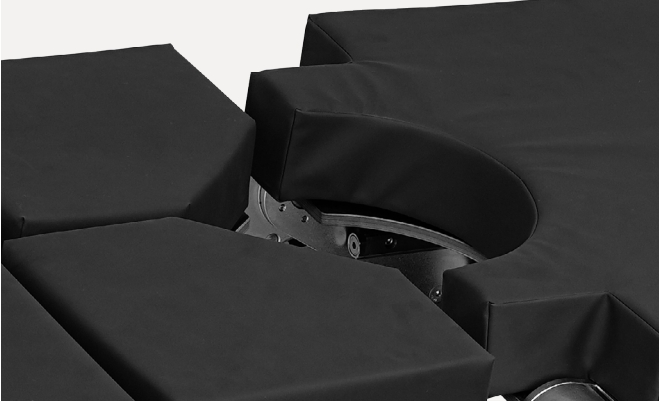

Made with a special layered foam sponge core (polyurethane memory foam) that naturally molds to the patient's body temperature and shape, preventing pressure sores during extended surgeries. Seam sealed for excellent integrity. X-ray transparent, anti.static, leak-proof, modular.

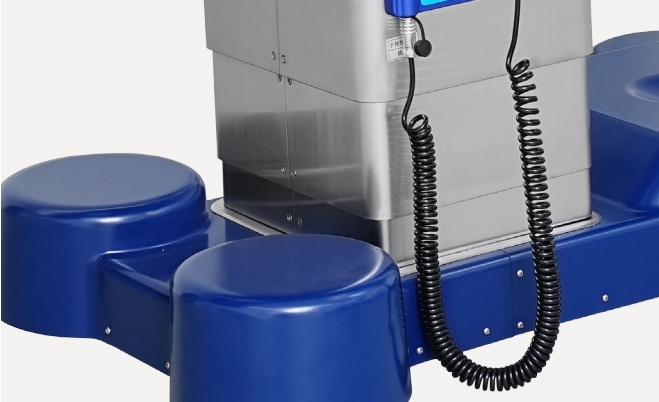

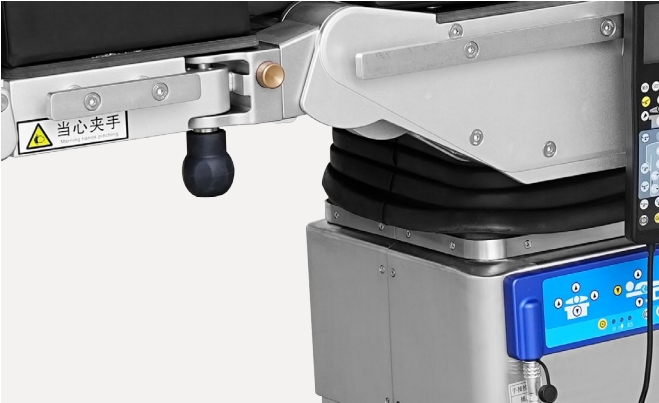

The table base is vacuum molded in one piece, durable, corrosion-resistant, and easy-to-clean.

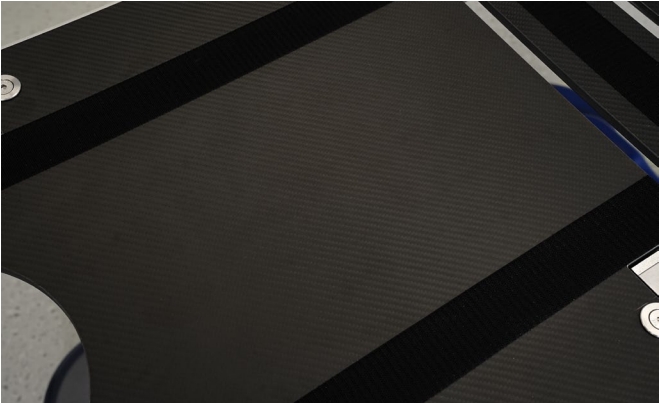

Equipped with a translucent X-ray projection board for orthopedic and other X-ray imaging needs.

NTELLIGENT OPERATING SYSTEM

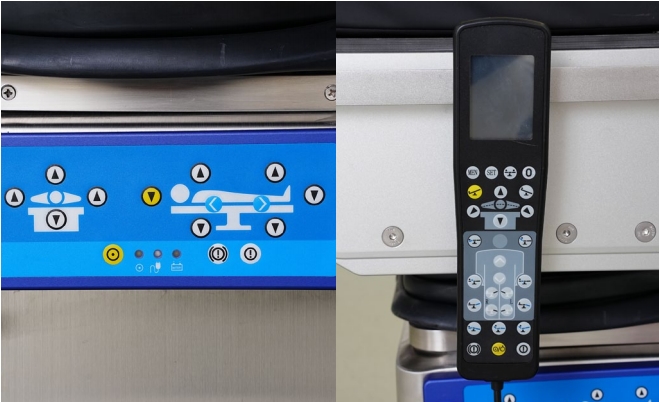

4 sets of intelligent operating systems: backup panel, wired LCD controller, optional wireless Bluetooth LCD controller (with wireless charging capability for Bluetooth controller), optional foot pedal controller, facilitating easy positioning for medical staff.

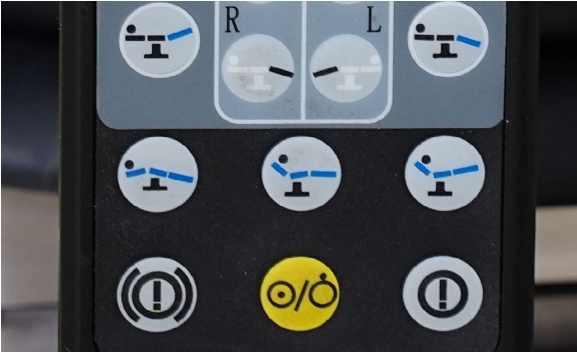

One-click composite positioning button for horizontal, flexed,extended, and beach chair positions. lt features 12 position memory settings that can be easily customized.

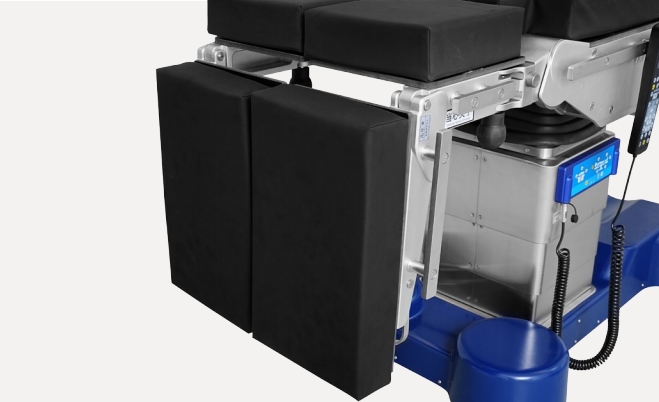

During electric adjustments, the left and right legs can operate independently or simultaneously, offering abduction and knee flexion functions to meet various lower limb surgery requirements.

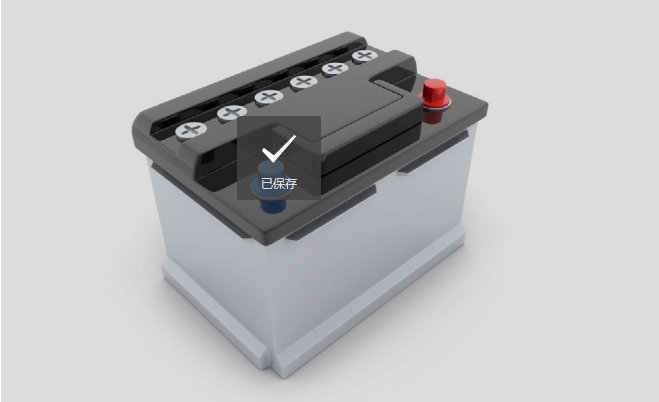

The surgical table is equipped with a battery and battery backup system to ensure uninterrupted surgery in case of AC power outage.automatically recharging when plugged in. Power requirements: 220V/50Hz.

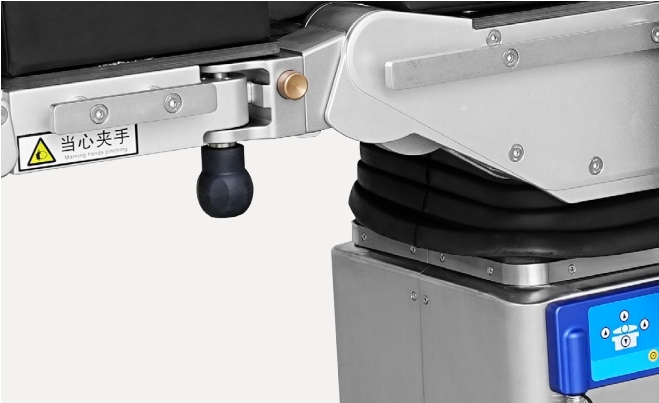

The dual-joint headboard design enhances the flexibility of the surgical bed and improves patient comfort during lateral positioning surgeries.

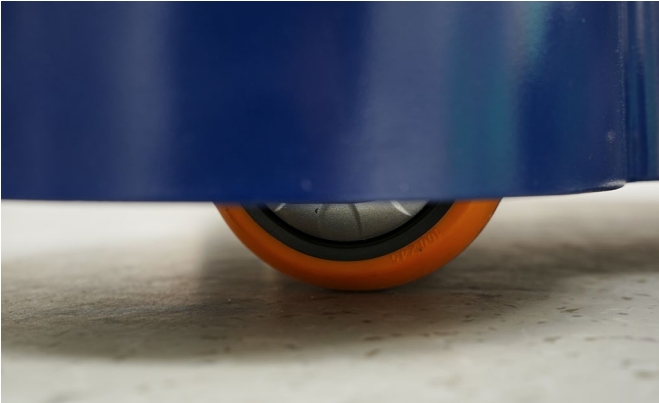

Polyurethane medical casters with a 100mm diameter for easy mobility.
