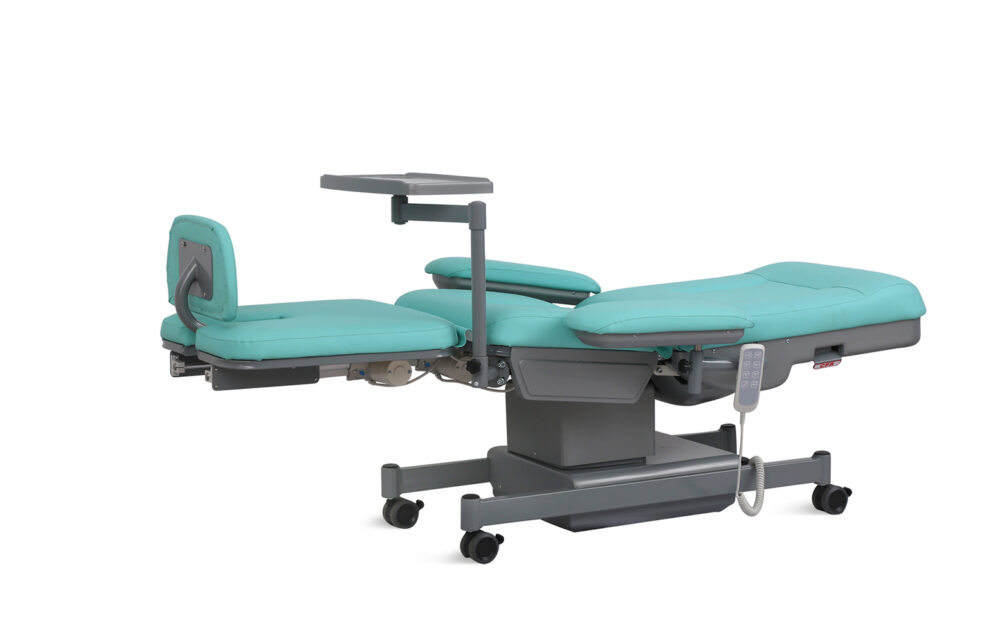

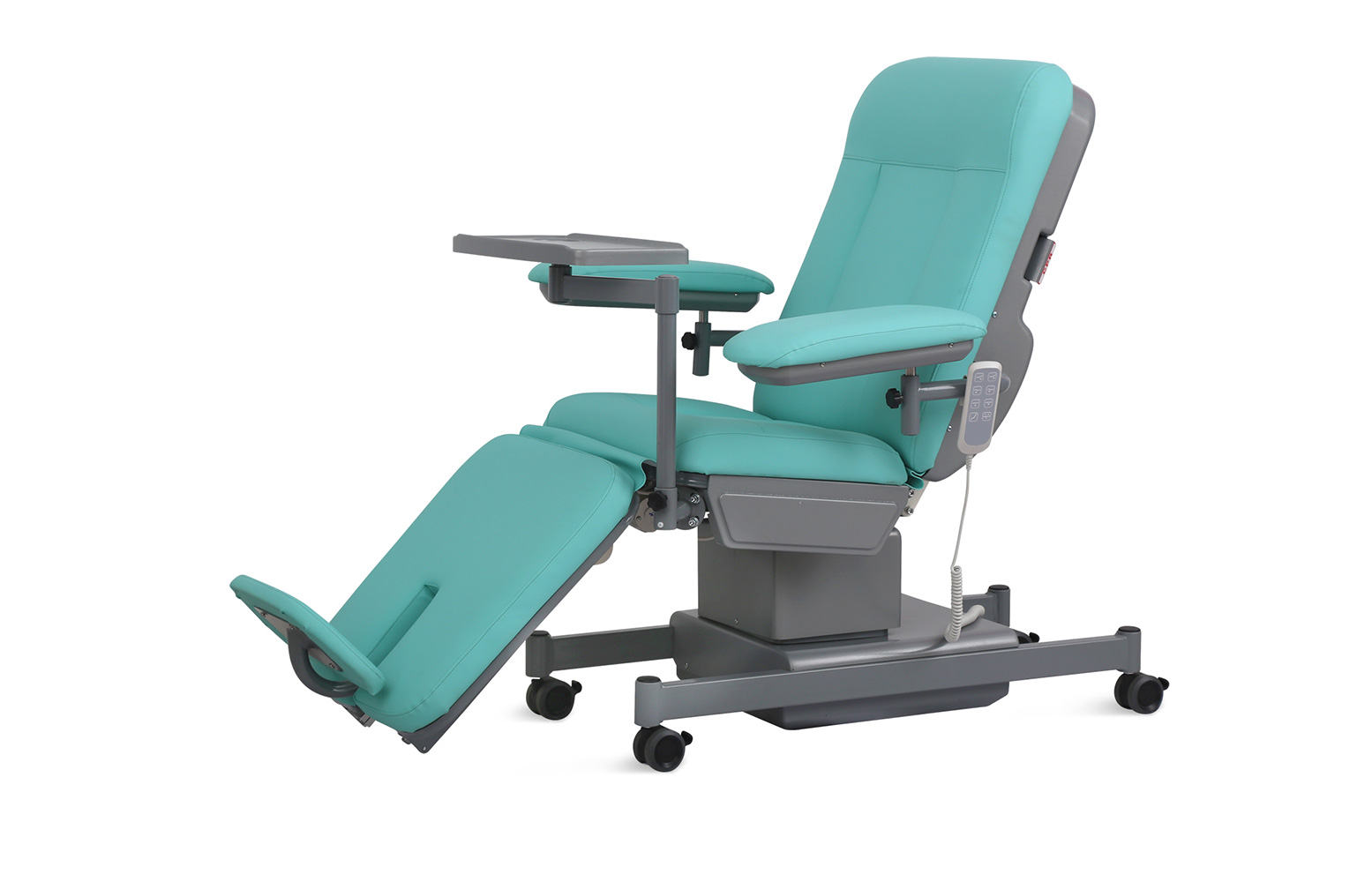

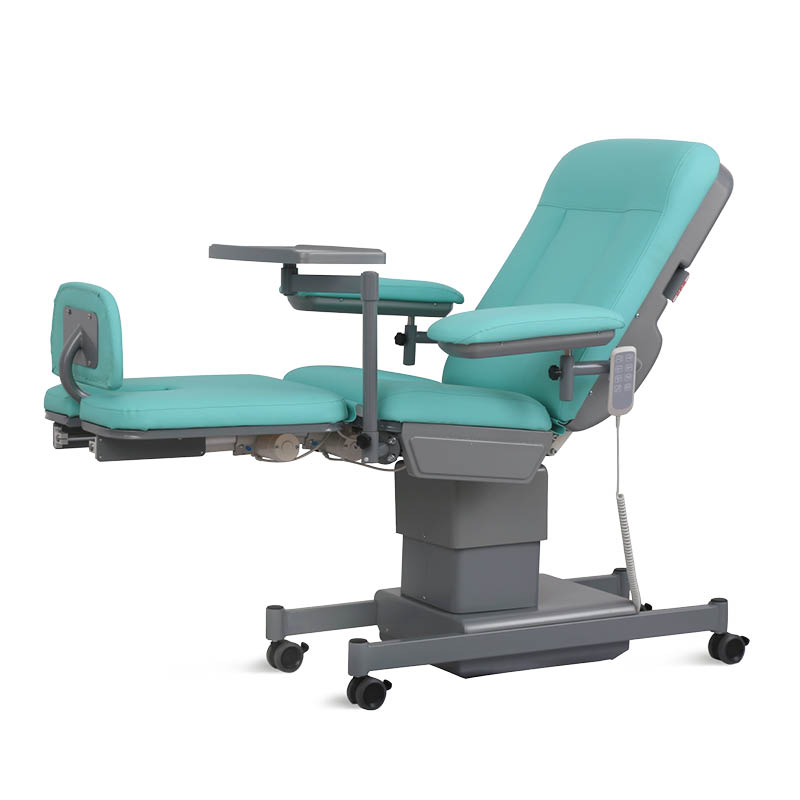

Electric-Dialysis-Chair QUILAR 2
The QUILAR 2 Dialysis Chair combines advanced ergonomics with high-quality materials for maximum patient comfort and clinical efficiency. With smooth motorized adjustments, upgraded multifunctional armrests, and thoughtful features like an anti-slip tray table and quick-release CPR function, it ensures a safe and user-friendly experience for both donors and caregivers.
Electric-Dialysis-Chair QUILAR 2
The QUILAR 2 Dialysis Chair combines advanced ergonomics with high-quality materials for maximum patient comfort and clinical efficiency. With smooth motorized adjustments, upgraded multifunctional armrests, and thoughtful features like an anti-slip tray table and quick-release CPR function, it ensures a safe and user-friendly experience for both donors and caregivers.
| Size | 1910×580mm |
| Back | 780×580mm |
| Seat | 480×580mm |
| Leg | 530×580mm |
| Seat height | 550-700mm |
| Armrest | 500×180mm |
| Mattress thickness | 70mm |
| Back rest lifting | -8° - 70° |
| Leg rest lifting | -50° - 0° |
| Armrest swing out | 0°-270° |
| Foot board adjustable distance | 150mm |
| Voltage and frequency | 100-240 V · 50/60 Hz |
| Plug as required (hospital grade) |
| With CPR | |
| Hand controller | 1pc |
| Power cord | 1pc |
| 3'' silent caster | 1set |
| Small dining table | 1pc |
QUALITY CONTROL
Material
Baosteel from Fortune Global 500.

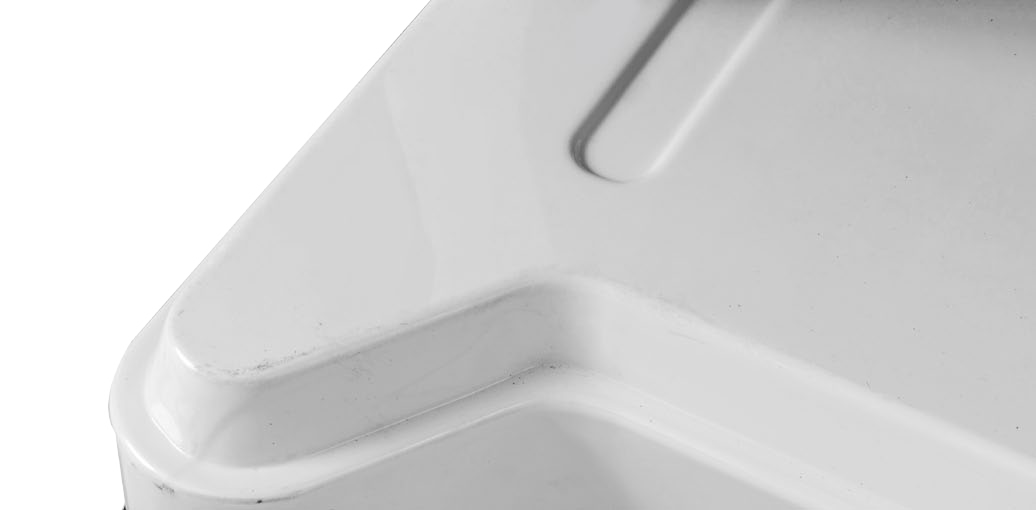

Plastic
11 Process epoxy painting, ASTM testing anti-baterial, paint thickness 0.12mm, brightness 60°, paint can resist 50kg impact.
Welding
Panasonic Robotic ensure 360° full smooth wedlding.

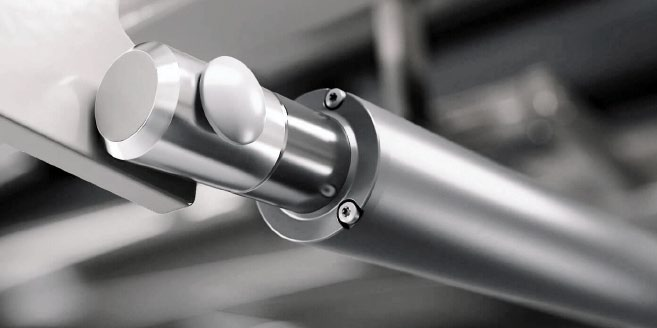

Electric Motor
Linear motor, with UL/ROHS/EN standard. Noise under 50 dB, with lifetime 20,000 times movement.

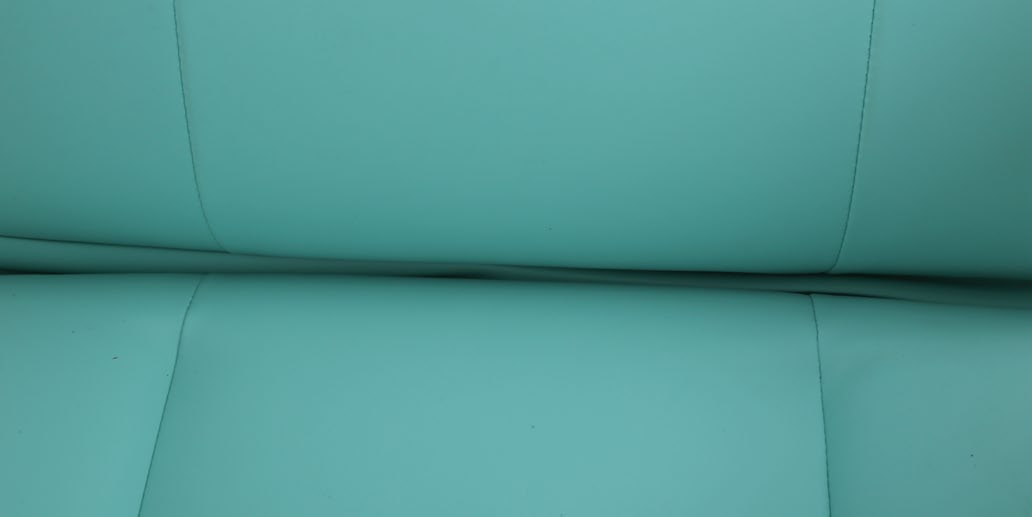

Chair Cover
Optional genuine leather or supebric cover, with artisanal making,comfortable hand feeling.

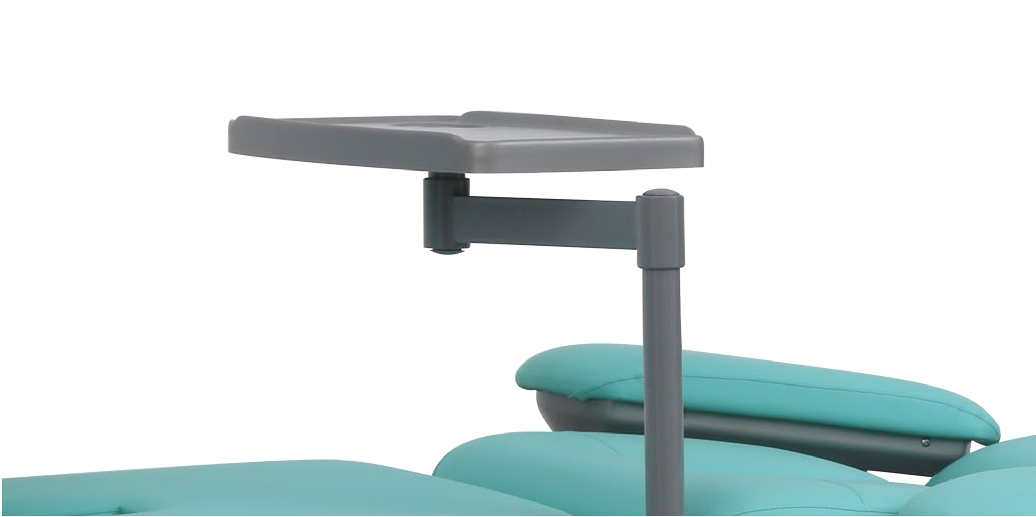

Table Board
Adjustable ABS tray table, with antiskid convex edge, tank for cup and cellphone. USB/5V optional. Very convenient for donor.

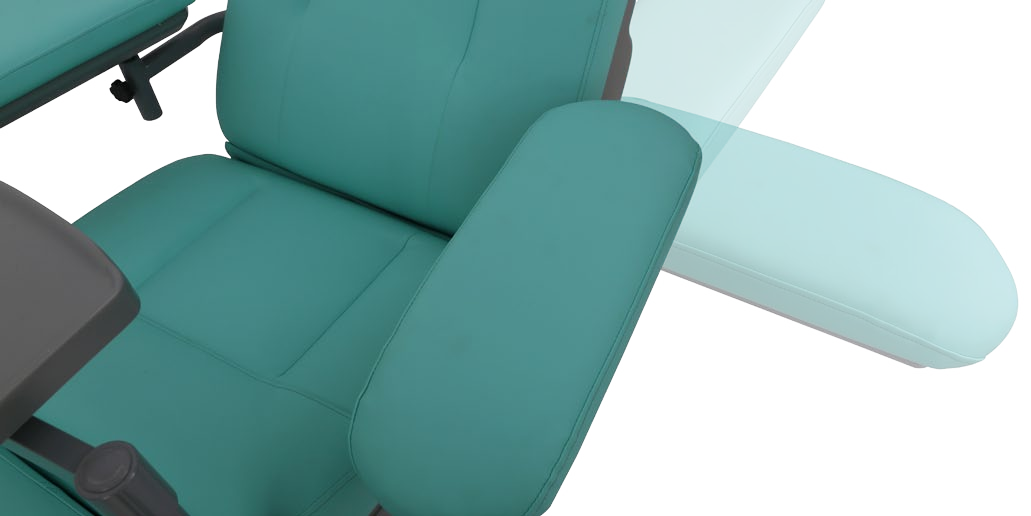

Handrail
Upgraded armrest, can be right-left, front-back adjustable. Donor can control universal position. Armrest is R120° concave curve, avoid donor's arm sliding,ensure the donor's safety and comfortable.
Foot Board
150mm foot board adjustable distance.
