ICU-Smart-Bed EXPERTO Z

EXPERTO Z supports the connection of monitors, ventilators, infusion pumps, defibrillators,anesthesia machines and other equipment to monitor patients heart rate, respiratory rate, bloodoxygen saturation, and blood pressure in real time , ECG, temperature, and 24-hour urine outputmonitoring,weighing and other functions.

Send Inquiry
Facebook Instagram Whatsapp

ICU-Smart-Bed EXPERTO Z

EXPERTO Z supports the connection of monitors, ventilators, infusion pumps, defibrillators,anesthesia machines and other equipment to monitor patients heart rate, respiratory rate, bloodoxygen saturation, and blood pressure in real time , ECG, temperature, and 24-hour urine outputmonitoring,weighing and other functions.

Facebook Twitter Youtube

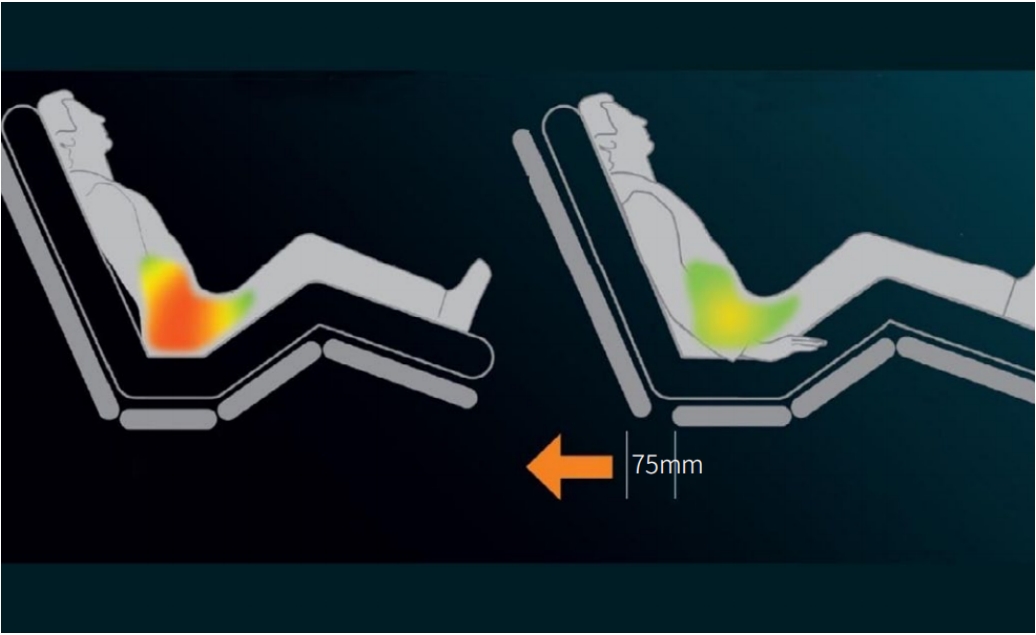

DUAL RETRACTIONPATENTED DESIGNINNOVATIVE 75+15 mm

Pressure ulcers, or bedsores, result from prolonged pressure and friction on skin and underlying tissues. – The dual retraction feature in a medical bed extends and distributes pressure evenly, reducing pressure concentration on the pelvic area. – This design enhances patient comfort and prevents pressure ulcer occurrence proactively. – The patented feature is applied to the backrest and thigh rest, retracting them by 75mm and 15mm respectively. – Retracing these components extends the bed surface in the pelvic area, alleviating pressure and shear forces,thus minimizing pressure ulcer risk. – The innovative design prioritizes patient well-being and offers a proactive solution for pressure ulcer prevention.

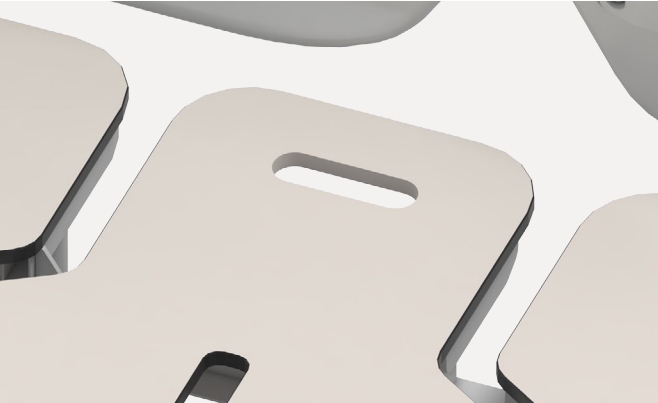

SOLID YET LIGHT MATTRESS PLATFORM

Full-body X-ray translucent bed platform 12mm thick phenolic resin bed platform for full-body X-ray functionality. Enlarge the seat area when back part is raised, providing more comforts for the patients. Reduce the depression of the sponge at the seat panel.

X-RAY EXAMINATION WITHOUT THE NEED TO MOVE THE PATIENT

With 500*1800mm full-body X-ray translucence Movable cassette holder size: 400*520mm Wide area of radio transparency. It has an X-Ray cassette holder for full-body x-ray examinations, without moving the patient. The X-ray tray holder fixed at the back section, easy for X-ray cassette film horizontally put out & put in, to avoid patient movement.
External Size (LxW)2127x1070 mm
Mattress Platform1925×900 mm
Safe Working Load250kg
Height Adjustment530-930 mm
Back-Rest Adjustment0-75°(±10°)
Knee-Rest Adjustment0-35°(±10°)
Reverse Trendelenburg0-15°
Trendelenburg0-15°
Angle Indicator0-90°
Auto-Regression75+15mm
Position Line30°
Linak Motor2pcs
Telescopic Column Motor3pcs
6"Double Side Secure®Castors,Central Locking4pcs
PP Side Rail with Integrated LCD Control Panel1set
PP Bed Ends with Safe Lock1set
X-Ray Transparent Phenolic Resin Bed Platform1set
Patent Angle Indicator4pcs
Φ85mm Wall Bumper Wheel4pcs
Trapeze Socket2pcs
IV Pole1set
IV Pole Provision8pcs
Drainage Hook4pcs
Central Locking Pedal2pcs
ABS Mattress Retainer6pcs
Hook Type LCD Control Panel at Foot End1pc
Emergency Stop Button1pc
Night Light1set
Manual CPR
Electric CPR
Weighing System

EASY OPERATION USING THECONTROL PANEL“LIGHT”

Staffand patients benefit from the tailor-made convenience and care functions that are available on either side of the "light"-version controlpanel.The panel can be integrated in the split safety sides if required.

PP BED ENDS WITH SAFE LOCK

Head and foot tilt angle indicator Integrated mechanicaltit angle indicatoron headboard and footboard.

FOOT PEDALS TO CONTROL

Each side has a set of foot pedals controlling bed height and tilts,with anti-mistake guard bar to prevent accidental activation.

FUNCTIONAL FEATURES

The dual-function mattress retainer serves to not only prevents scratches on the bed frame's paint but also retrains the mattress toits place, and prevents mattress sliding.

Effective use of bed space is crucial. The "integrated bumper wheels'design with lV pole holes and universal D series Ф85mm bumper wheels provide effective collision protection during bed transport.

One multi-outlet power strip (4 outlets) on each side, providing power for various lCU instruments.

SS IV pole, bearing 15kg.

6' Double side castors, central locking. TPR tire no worn out after running 10 km. Anti-winding hard shell cover, united forming without bolts.Pass dynamic test: pass obstacles 40000 times, under the standard 200kg load of the whole bed.
